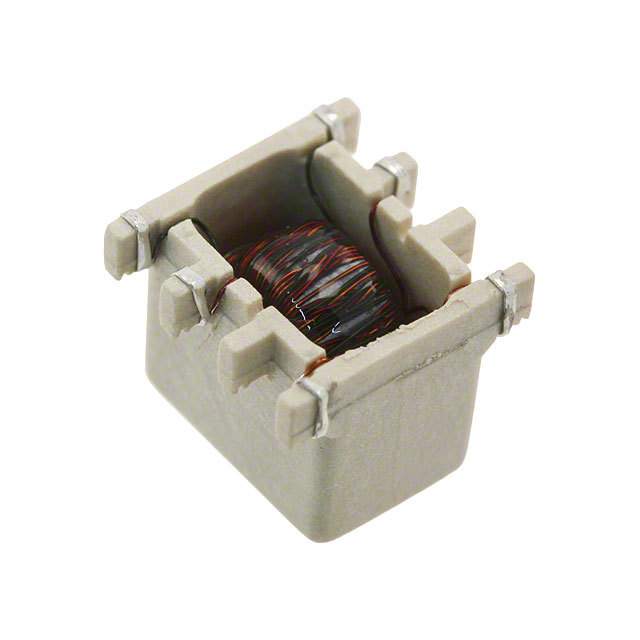

P0544NLT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy P0544NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy P0544NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | P0544NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | PULSE XFMR 1:1:1 3.3MH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 400 pcs | 800 pcs | 1200 pcs | ||
|---|---|---|---|---|---|
| $0.656 | $0.65 | $0.576 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | P0544NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | PULSE XFMR 1:1:1 3.3MH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57002 pcs | Data sheet | SMT Gate Drive Transformers |
| Category | Transformers | Turns Ratio - Primary:Secondary | 1:1:1 |
| Transformer Type | - | Size / Dimension | 0.355" L x 0.340" W (9.02mm x 8.64mm) |
| Series | - | Packaging | Tape & Reel (TR) |
| Other Names | 553-1769-2 P0544NLT-ND |
Operating Temperature | -40°C ~ 130°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 3.3mH | Height - Seated (Max) | 0.300" (7.62mm) |
| Energy Time (E.T.) | 45.1V µS |
