JXD0-0015NL

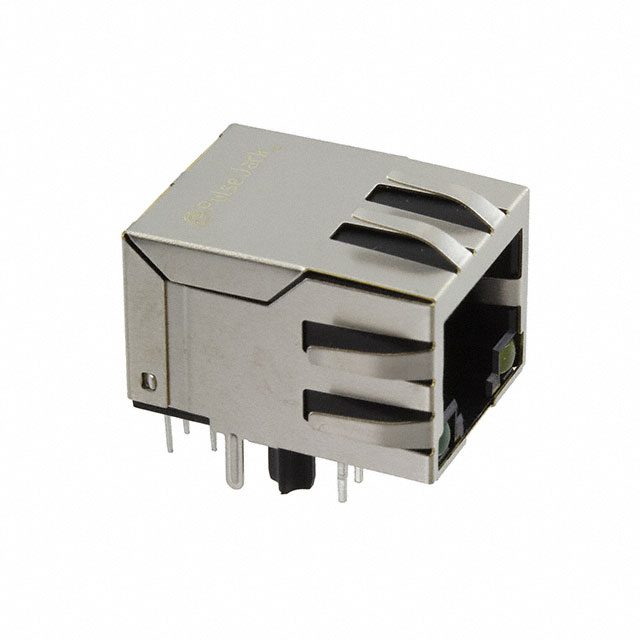

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JXD0-0015NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JXD0-0015NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JXD0-0015NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CONN,RJ45, 1GD,1:1, GY,EMI,TY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.362 | $2.264 | $2.067 | $1.968 | $1.87 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.673 | $1.575 | $1.378 | $1.309 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JXD0-0015NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN,RJ45, 1GD,1:1, GY,EMI,TY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26556 pcs | Data sheet | JXD Series, 1000Base-T Ethernet Product InfoJXD0-0015NL DatasheetJXD0-0015NL Datasheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Down | Shielding | Shielded, EMI Finger |
| Shield Material | Brass | Series | PULSEJACK™ JXD0 |
| Packaging | Tray | Other Names | 553-3736 |
| Orientation | 90° Angle (Right) | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| LED Color | Green - Yellow | Housing Material | Thermoplastic |
| Height Above Board | 0.537" (13.65mm) | Features | Board Lock |
| Detailed Description | 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-T, AutoMDIX | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | RJ45 | Applications | 10/100 Base-T, AutoMDIX |
