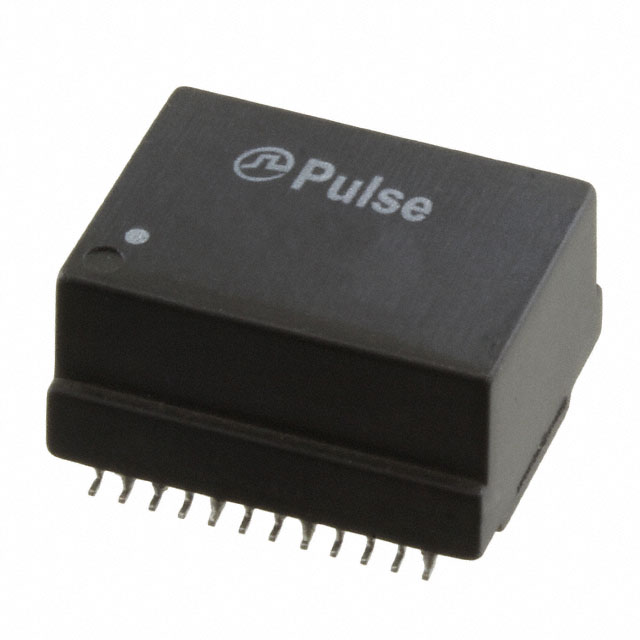

HX5224NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HX5224NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HX5224NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HX5224NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | PULSE XFMR 1 CT:1CT TX/RX 350UH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HX5224NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | PULSE XFMR 1 CT:1CT TX/RX 350UH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4030 pcs | Data sheet | HX5224NL Datasheet |
| Category | Transformers | Weight | - |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver | Transformer Type | LAN 10/100/1000 Base-T |
| Size / Dimension | 0.537" L x 0.570" W (13.64mm x 14.48mm) | Series | - |
| Other Names | 553-2611 | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 350µH |
| Height - Seated (Max) | 0.245" (6.22mm) | Energy Time (E.T.) | - |
