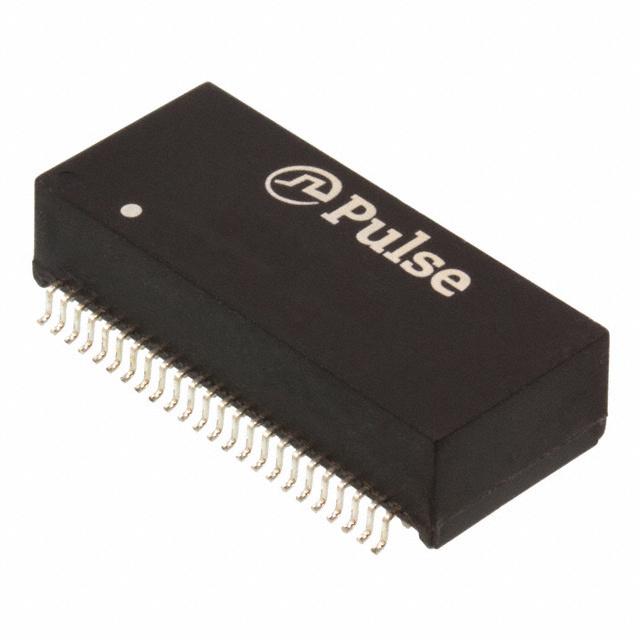

H5014NLT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H5014NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H5014NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H5014NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | TRANSFORMER MODULE GIGABIT 2PORT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.808 | $2.182 | $2.124 | $1.829 | $1.746 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | H5014NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | TRANSFORMER MODULE GIGABIT 2PORT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20924 pcs | Data sheet | H5014NL Drawing Spec1000Base-T Magnetics ModulesLAN Product Guide |
| Category | Transformers | Weight | 0.06 oz (1.71g) |
| Turns Ratio - Primary:Secondary | 1CT:1CT | Transformer Type | Isolation and Data Interface (Encapsulated) |
| Size / Dimension | 1.095" L x 0.480" W (27.81mm x 12.19mm) | Series | - |
| Packaging | Cut Tape (CT) | Other Names | 553-1924-1 |
| Operating Temperature | 0°C ~ 70°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | - |
| Height - Seated (Max) | 0.295" (7.49mm) | Energy Time (E.T.) | - |
