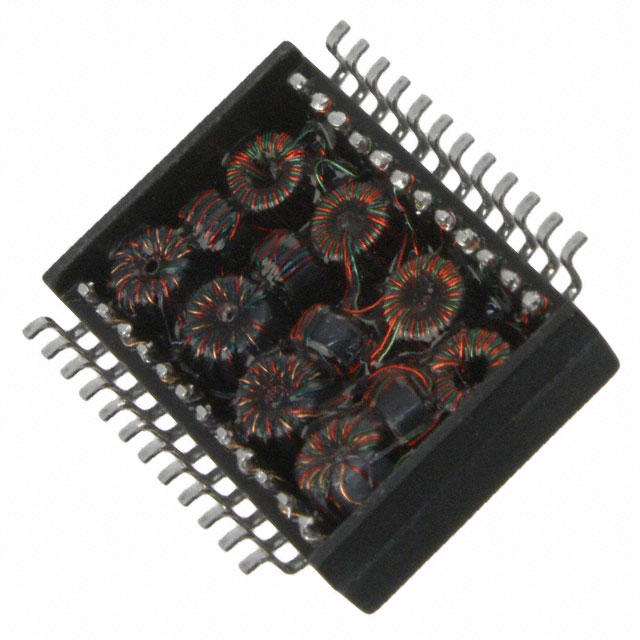

H5015NLT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H5015NLT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H5015NLT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H5015NLT |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | TRANSFORMER MODULE GIGABIT 1PORT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 400 pcs | 800 pcs | 1200 pcs | ||
|---|---|---|---|---|---|
| $1.733 | $1.703 | $1.673 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | H5015NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | TRANSFORMER MODULE GIGABIT 1PORT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18692 pcs | Data sheet | 1000Base-T Magnetics ModulesH5015NL Drawing Spec |
| Category | Transformers | Weight | 0.05 oz (1.42g) |
| Turns Ratio - Primary:Secondary | 1CT:1CT | Transformer Type | Isolation and Data Interface (Encapsulated) |
| Size / Dimension | 0.697" L x 0.480" W (17.70mm x 12.20mm) | Series | - |
| Packaging | Tape & Reel (TR) | Other Names | 553-1925-2 H5015NLT-ND |
| Operating Temperature | 0°C ~ 70°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | - |
| Height - Seated (Max) | 0.185" (4.70mm) | Energy Time (E.T.) | - |
