H5012FNL

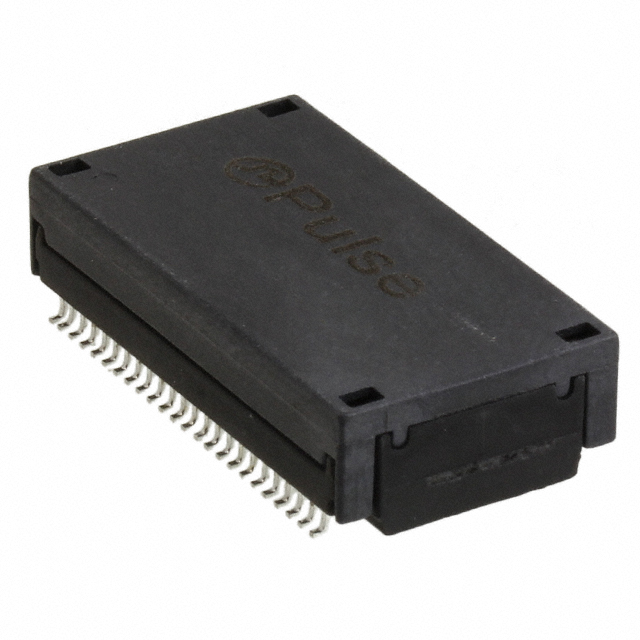

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H5012FNL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H5012FNL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H5012FNL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | PULSE XFMR 1CT:1CT TX 1CT:1CT RX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 15 pcs | 30 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $5.634 | $4.292 | $3.957 | $3.823 | ||
| 105 pcs | 255 pcs | 510 pcs | 1005 pcs | ||
| $3.756 | $3.622 | $3.487 | $3.353 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H5012FNL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | PULSE XFMR 1CT:1CT TX 1CT:1CT RX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10453 pcs | Data sheet | H5012FNLT Drawing |
| Category | Transformers | Weight | - |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver | Transformer Type | LAN 10/100/1000 Base-T |
| Size / Dimension | 1.095" L x 0.590" W (27.81mm x 14.99mm) | Series | - |
| Packaging | Tube | Other Names | 553-2226 |
| Operating Temperature | 0°C ~ 70°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 350µH |
| Height - Seated (Max) | 0.285" (7.24mm) | Energy Time (E.T.) | - |
