Home > Products > Transformers > Pulse Transformers > H1270NLT

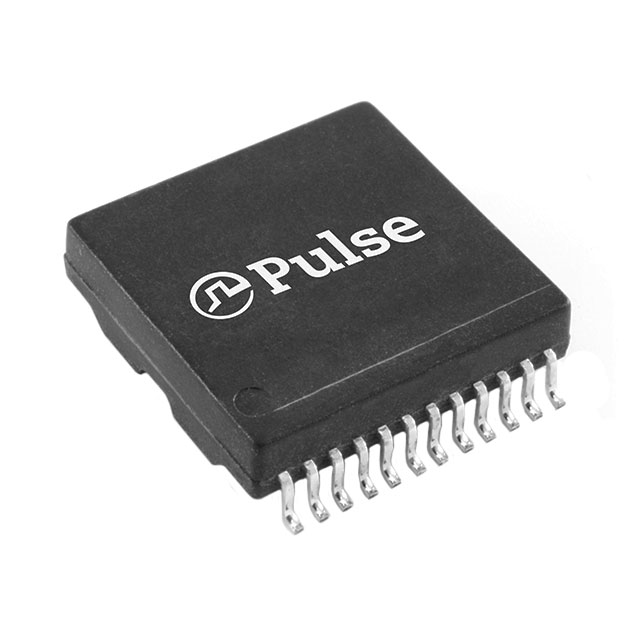

H1270NLT

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H1270NLT with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	H1270NLT
Manufacturer	Pulse Electronics Corporation
Description	XFRMR MODULE 2PORT 1:1 10/100
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 17173 pcs
Reference Price (In US Dollars)	500 pcs	1000 pcs
Reference Price (In US Dollars)	$1.79	$1.759

Product parameter
Data sheet

Product parameter

Part Number	H1270NLT	Manufacturer	Pulse Electronics Corporation
Description	XFRMR MODULE 2PORT 1:1 10/100	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17173 pcs	Data sheet	LAN Product Guide 10/100BASE-TX Dual Port Xfrmr Module H1270NL Datasheet
Category	Transformers	Weight	0.05 oz (1.42g)
Turns Ratio - Primary:Secondary	1:1 Transmitter, 1:1 Receiver	Transformer Type	Isolation and Data Interface (Encapsulated)
Size / Dimension	0.515" L x 0.500" W (13.08mm x 12.70mm)	Series	-
Packaging	Tape & Reel (TR)	Other Names	553-2063-2 H1270NLT-ND
Operating Temperature	0°C ~ 70°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	-
Height - Seated (Max)	0.155" (3.93mm)	Energy Time (E.T.)	-
