Home > Products > Transformers > Pulse Transformers > H1270FNL

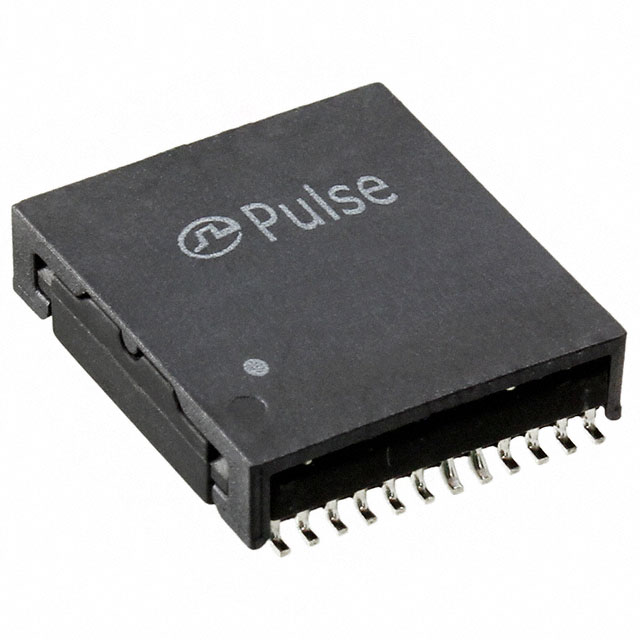

H1270FNL

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H1270FNL with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	H1270FNL
Manufacturer	Pulse Electronics Corporation
Description	PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	105 pcs	280 pcs	525 pcs	1015 pcs
~~In Stock~~ 19267 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	35 pcs	70 pcs
	$2.992	$2.325	$2.262	$1.948
	$1.86	$1.822	$1.791	$1.759

Product parameter
Data sheet

Product parameter

Part Number	H1270FNL	Manufacturer	Pulse Electronics Corporation
Description	PULSE XFMR 1CT:1CT TX 1CT:1CT RX	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19267 pcs	Data sheet	H1270FNL Drawing
Category	Transformers	Weight	-
Turns Ratio - Primary:Secondary	1CT:1CT Transmitter, 1CT:1CT Receiver	Transformer Type	LAN 10G Base-T
Size / Dimension	0.515" L x 0.574" W (13.08mm x 14.58mm)	Series	-
Other Names	553-2220	Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	350µH	Height - Seated (Max)	0.145" (3.68mm)
Energy Time (E.T.)	-
