Home > Products > Transformers > Pulse Transformers > H1270FNLT

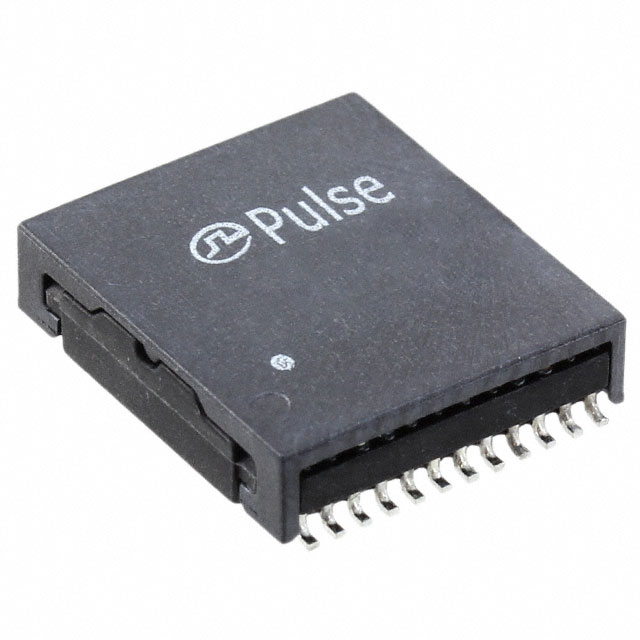

H1270FNLT

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H1270FNLT with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	H1270FNLT
Manufacturer	Pulse Electronics Corporation
Description	PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 18295 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$3.364	$2.614	$2.543
	$2.19	$2.091	$2.049

Product parameter
Data sheet

Product parameter

Part Number	H1270FNLT	Manufacturer	Pulse Electronics Corporation
Description	PULSE XFMR 1CT:1CT TX 1CT:1CT RX	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18295 pcs	Data sheet	H1270FNL Drawing
Category	Transformers	Weight	-
Turns Ratio - Primary:Secondary	1CT:1CT Transmitter, 1CT:1CT Receiver	Transformer Type	LAN 10G Base-T
Size / Dimension	0.515" L x 0.574" W (13.08mm x 14.58mm)	Series	-
Packaging	Original-Reel®	Other Names	553-2221-6
Operating Temperature	0°C ~ 70°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	350µH
Height - Seated (Max)	0.145" (3.68mm)	Energy Time (E.T.)	-
