FIS115NL

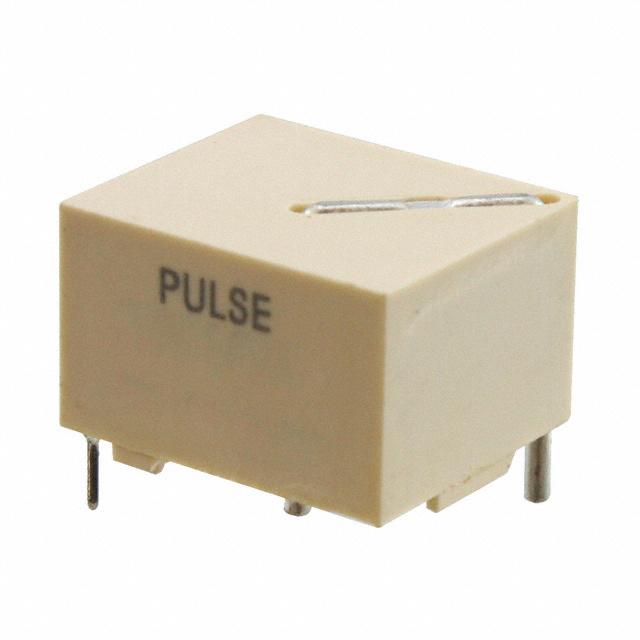

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FIS115NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FIS115NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FIS115NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR 1:100 25A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | 120 pcs |
|---|---|---|---|---|---|
| $0.72 | $0.576 | $0.468 | $0.456 | $0.444 | |
| 270 pcs | 510 pcs | 1020 pcs | 5010 pcs | ||
| $0.432 | $0.429 | $0.379 | $0.348 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | FIS115NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CURR SENSE XFMR 1:100 25A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67956 pcs | Data sheet | FIS 1X5 Series |
| Category | Transformers | Weight | 0.017 lb (7.71g) |
| Type | Invasive | Turns Ratio - Primary:Secondary | 1:100 |
| Termination Style | PC Pin | Size / Dimension | 0.693" L x 0.591" W (17.60mm x 15.00mm) |
| Series | FIS 1X5 | Ratings | - |
| Packaging | Bulk | Other Names | 553-1834-5 FIS115NL-ND |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 18mH | Height - Seated (Max) | 0.492" (12.50mm) |
| Frequency Range | 500kHz Max | Energy Time (E.T.) | 350V µS |
| Detailed Description | 1:100 Current Sense Transformer 500kHz Max 2 Ohm Max 18mH Through Hole | DC Resistance (DCR) | 2 Ohm Max |
| Current Ratio | - |
