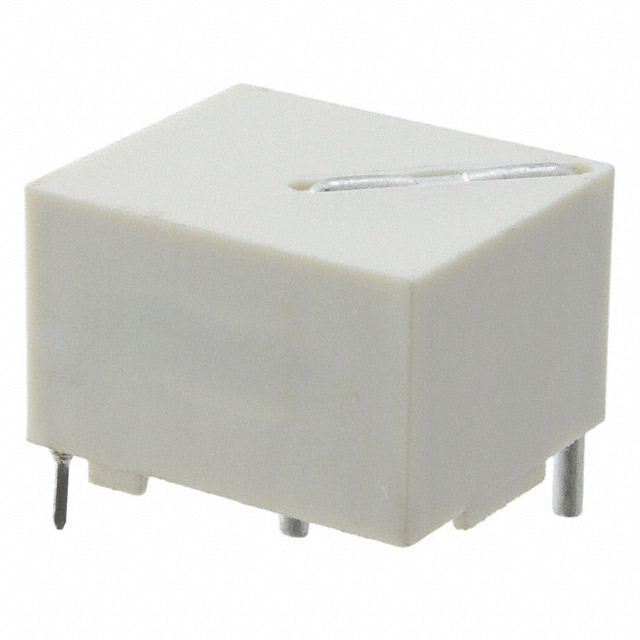

FIS105NL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FIS105NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FIS105NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FIS105NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | CURR SENSE XFMR 1:50 25A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | 120 pcs |
|---|---|---|---|---|---|
| $0.982 | $0.786 | $0.639 | $0.622 | $0.606 | |
| 270 pcs | 510 pcs | 1020 pcs | 5010 pcs | ||
| $0.589 | $0.584 | $0.517 | $0.475 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | FIS105NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CURR SENSE XFMR 1:50 25A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75847 pcs | Data sheet | FIS 1X5 Series |
| Category | Transformers | Weight | 0.017 lb (7.71g) |
| Type | Invasive | Turns Ratio - Primary:Secondary | 1:50 |
| Termination Style | PC Pin | Size / Dimension | 0.693" L x 0.591" W (17.60mm x 15.00mm) |
| Series | FIS 1X5 | Ratings | - |
| Packaging | Bulk | Other Names | 553-1832-5 FIS105NL-ND |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance | 4.7mH | Height - Seated (Max) | 0.492" (12.50mm) |
| Frequency Range | 500kHz Max | Energy Time (E.T.) | 175V µS |
| Detailed Description | 1:50 Current Sense Transformer 500kHz Max 500 mOhm Max 4.7mH Through Hole | DC Resistance (DCR) | 500 mOhm Max |
| Current Ratio | - |
