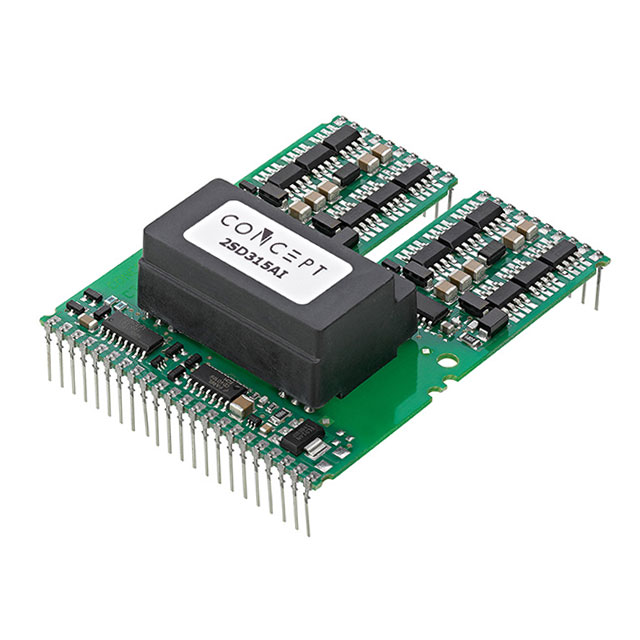

2SD315AI-33
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2SD315AI-33 with confidence from Components-World.HK, 1 Year Warranty
Dowload 2SD315AI-33 Details in PDFSee Product Specifications for product details.
Buy 2SD315AI-33 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2SD315AI-33 |
|---|---|
| Manufacturer | Power Integrations |
| Description | IGBT DVR CORE 3300V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3 pcs | ||||
|---|---|---|---|---|---|
| $90.19 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2SD315AI-33 | Manufacturer | Power Integrations |
|---|---|---|---|
| Description | IGBT DVR CORE 3300V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 358 pcs | Data sheet | SCALE-1 Manual2SD315AI-33 |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 15V |
| Series | SCALE™-1 | Rise / Fall Time (Typ) | - |
| Operating Temperature | -40°C ~ 85°C (TA) | Number of Drivers | 2 |
| Manufacturer Standard Lead Time | 16 Weeks | Logic Voltage - VIL, VIH | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | - |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET | Driven Configuration | Half-Bridge |
| Detailed Description | Half-Bridge Gate Driver IC | Current - Peak Output (Source, Sink) | 18A, 18A |
| Channel Type | - |
