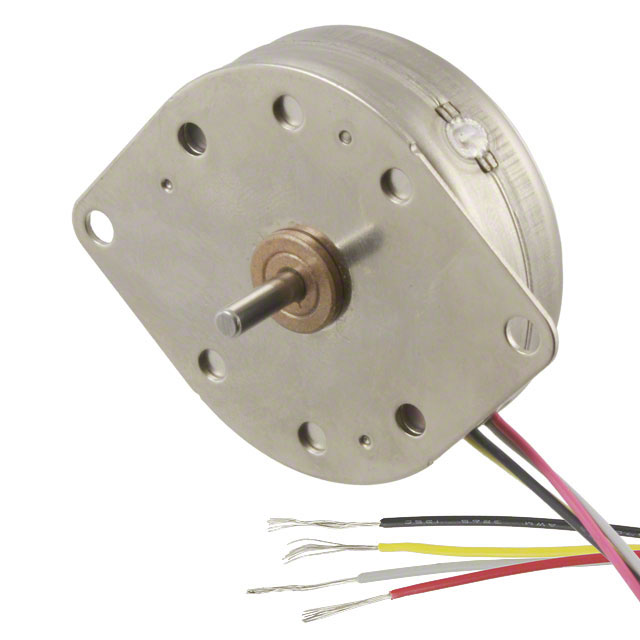

42M100B1B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 42M100B1B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 42M100B1B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 42M100B1B |
|---|---|
| Manufacturer | Portescap |
| Description | STEPPER MOTOR PM BIPOLAR 5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $10.492 | $10.175 | $9.539 | $9.221 | ||
| 50 pcs | 100 pcs | 250 pcs | |||
| $8.903 | $8.585 | $8.458 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 42M100B1B | Manufacturer | Portescap |
|---|---|---|---|
| Description | STEPPER MOTOR PM BIPOLAR 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4460 pcs | Data sheet | 42M100B DatasheetCanStack Motor Part Numbering |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.193 lb (87.54g) |
| Voltage - Rated | 5VDC | Type | Permanent Magnet |
| Torque - Holding (oz-in / mNm) | 7 / 49.4 | Termination Style | Wire Leads |
| Steps per Revolution | 100 | Step Angle | 3.6° |
| Size / Dimension | Round - 1.650" Dia (42.00mm) | Series | 42M |
| Rotor Inertia | 11.8gcm² | Other Names | 403-1012 |
| Operating Temperature | -20°C ~ 70°C | Mounting Hole Spacing | 1.950" (49.48mm) |
| Length - Shaft and Bearing | 0.450" (11.43mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Round Shaft | Diameter - Shaft | 0.118" (3.00mm) |
| Detailed Description | Bipolar Stepper Motor 400mA 5VDC | Current Rating | 400mA |
| Coil Type | Bipolar | Coil Resistance | 12.5 Ohms |
| Approvals | - | Accuracy | ±11% |
