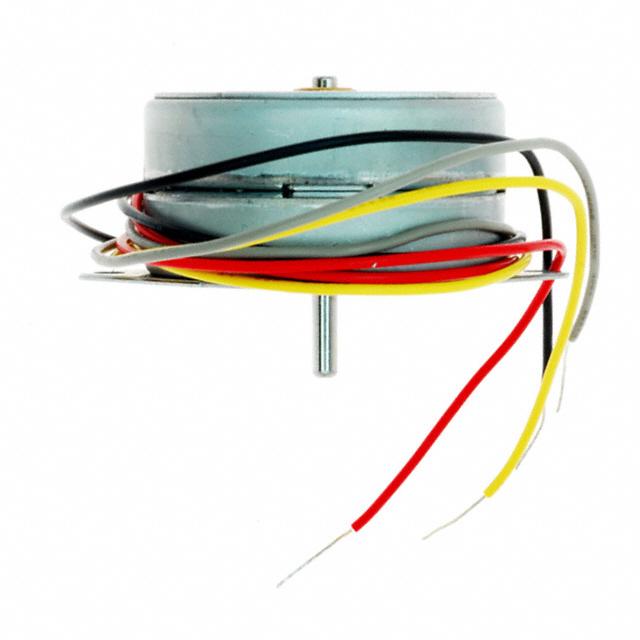

42M048C1B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 42M048C1B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 42M048C1B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 42M048C1B |
|---|---|
| Manufacturer | Portescap |
| Description | STEPPER MOTOR PM BIPOLAR 5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $9.70 | $9.405 | $8.817 | $8.523 | ||
| 50 pcs | 100 pcs | 250 pcs | |||
| $8.229 | $7.935 | $7.818 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 42M048C1B | Manufacturer | Portescap |
|---|---|---|---|
| Description | STEPPER MOTOR PM BIPOLAR 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4559 pcs | Data sheet | CanStack Motor Part Numbering42M Series Wiring Diagram42M048C Spec.Can Stack Stepper Speed vs Torque Curves |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.319 lb (144.7g) |
| Voltage - Rated | 5VDC | Type | Permanent Magnet |
| Torque - Holding (oz-in / mNm) | 11.9 / 84 | Termination Style | Wire Leads |
| Steps per Revolution | 48 | Step Angle | 7.5° |
| Size / Dimension | Round - 1.650" Dia (42.00mm) | Series | 42M |
| Rotor Inertia | 12.5gcm² | Other Names | 403-1009 |
| Operating Temperature | -20°C ~ 70°C | Mounting Hole Spacing | 1.950" (49.48mm) |
| Manufacturer Standard Lead Time | 12 Weeks | Length - Shaft and Bearing | 0.450" (11.43mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Round Shaft |
| Diameter - Shaft | 0.118" (3.00mm) | Detailed Description | Bipolar Stepper Motor 550mA 5VDC |
| Current Rating | 550mA | Coil Type | Bipolar |
| Coil Resistance | 9.1 Ohms | Approvals | - |
| Accuracy | ±15% |
