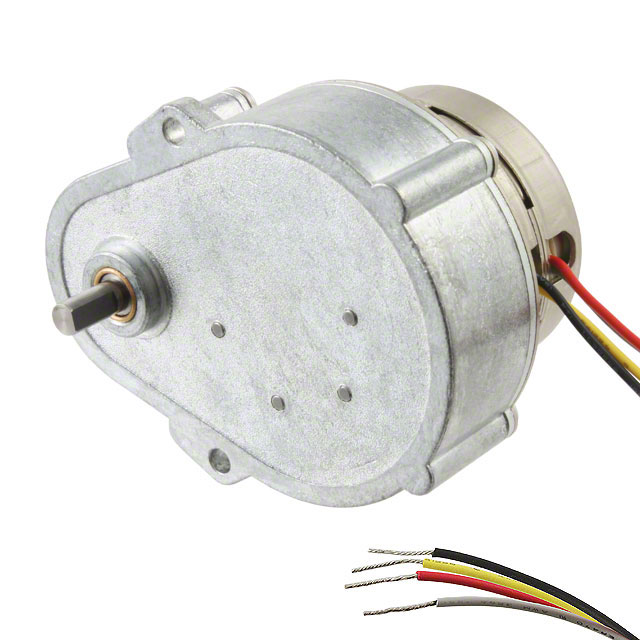

42M048C1B-Z36
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 42M048C1B-Z36 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 42M048C1B-Z36 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 42M048C1B-Z36 |
|---|---|
| Manufacturer | Portescap |
| Description | STEP MOTOR PM GEARED BIPOLAR 5V |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 42M048C1B-Z36 | Manufacturer | Portescap |
|---|---|---|---|
| Description | STEP MOTOR PM GEARED BIPOLAR 5V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4638 pcs | Data sheet | 42M Series, Type Z Wiring DiagramCanStack Motor Part Numbering |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.688 lb (312.07g) |
| Voltage - Rated | 5VDC | Type | Permanent Magnet Gear Motor |
| Torque - Holding (oz-in / mNm) | 11.9 / 84 | Termination Style | Wire Leads |
| Steps per Revolution | 2400 | Step Angle | 0.15° |
| Size / Dimension | Round - 1.650" Dia (42.00mm) | Series | 42M-Z |
| Rotor Inertia | 12.5gcm² | Other Names | 403-1027 |
| Operating Temperature | -20°C ~ 70°C | Mounting Hole Spacing | 1.880" (47.63mm) |
| Length - Shaft and Bearing | 0.500" (12.70mm) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Features | Round Shaft | Diameter - Shaft | 0.188" (4.77mm) |
| Detailed Description | Bipolar Stepper Motor 550mA 5VDC | Current Rating | 550mA |
| Coil Type | Bipolar | Coil Resistance | 9.1 Ohms |
| Approvals | - | Accuracy | - |
