35DBM10B2U-L

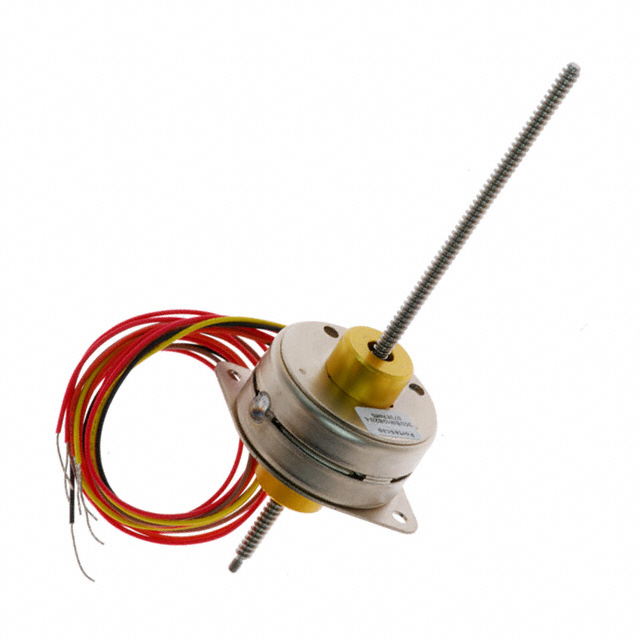

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 35DBM10B2U-L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 35DBM10B2U-L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 35DBM10B2U-L |
|---|---|
| Manufacturer | Portescap |
| Description | STEPPER MOTOR PM LINEAR ACT 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | ||
|---|---|---|---|---|---|
| $23.454 | $23.049 | $22.645 | |||
| 25 pcs | 50 pcs | 100 pcs | |||
| $22.24 | $21.836 | $21.513 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 35DBM10B2U-L | Manufacturer | Portescap |
|---|---|---|---|
| Description | STEPPER MOTOR PM LINEAR ACT 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1811 pcs | Data sheet | 35DBM-L Series Wiring Diagram35DBM-L Spec.Stepper DLA TechnologyCanStack Vector Part Numbering |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.188 lb (85.28g) |
| Voltage - Rated | 12VDC | Type | Permanent Magnet Linear Actuator |
| Torque - Holding (oz-in / mNm) | - | Termination Style | Wire Leads |
| Steps per Revolution | 48 | Step Angle | 7.5° |
| Size / Dimension | Round - 1.420" Dia (35.94mm) | Series | 35DBM-L |
| Rotor Inertia | - | Other Names | 35DBM10B2UL 403-1034 |
| Operating Temperature | -20°C ~ 70°C | Mounting Hole Spacing | 1.650" (42.00mm) |
| Manufacturer Standard Lead Time | 16 Weeks | Length - Shaft and Bearing | 1.600" (40.56mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Threaded Shaft |
| Diameter - Shaft | 0.138" (3.51mm) | Detailed Description | Unipolar Stepper Motor 210mA 12VDC |
| Current Rating | 210mA | Coil Type | Unipolar |
| Coil Resistance | 58 Ohms | Approvals | - |
| Accuracy | ±15% |
