Home > Products > Motors, Solenoids, Driver Boards/Modules > Stepper Motors > 316020003

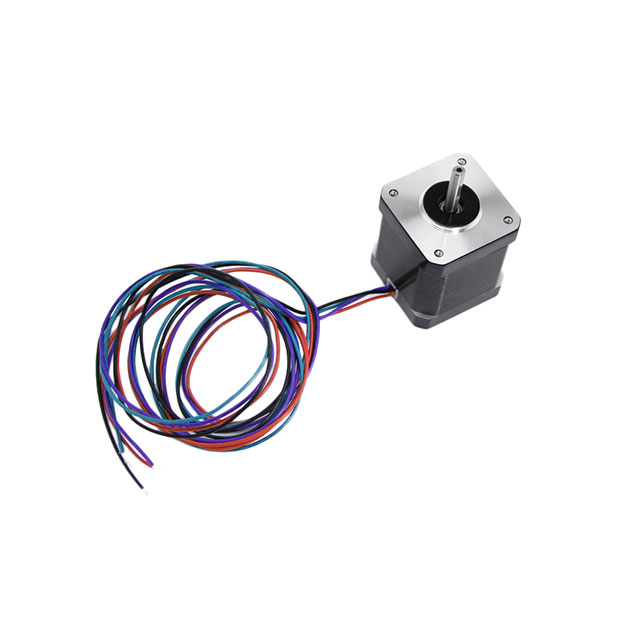

316020003

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 316020003 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	316020003
Manufacturer	Seeed
Description	STEPPER MOTOR HYBRID BIPOLAR 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4571 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	316020003	Manufacturer	Seeed
Description	STEPPER MOTOR HYBRID BIPOLAR 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4571 pcs	Data sheet	316020003
Category	Motors, Solenoids, Driver Boards/Modules	Weight	0.827 lb (375.12g)
Voltage - Rated	24VDC	Type	Hybrid
Torque - Holding (oz-in / mNm)	76.38 / 539.37	Termination Style	Wire Leads
Steps per Revolution	200	Step Angle	1.8°
Size / Dimension	Square - 1.665" x 1.665" (42.30mm x 42.30mm)	Series	-
Rotor Inertia	-	Other Names	1597-1358 316020003-ND
Operating Temperature	-	NEMA Frame Size	17
Mounting Hole Spacing	1.220" (31.00mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Length - Shaft and Bearing	0.867" (22.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Round Shaft	Diameter - Shaft	0.197" (5.00mm)
Detailed Description	Bipolar Stepper Motor 200 Step 1.5A 24VDC	Current Rating	1.5A
Coil Type	Bipolar	Coil Resistance	1.6 Ohms
Approvals	-	Accuracy	-
