Home > Products > Motors, Solenoids, Driver Boards/Modules > Stepper Motors > PG35S-D48-HHC2

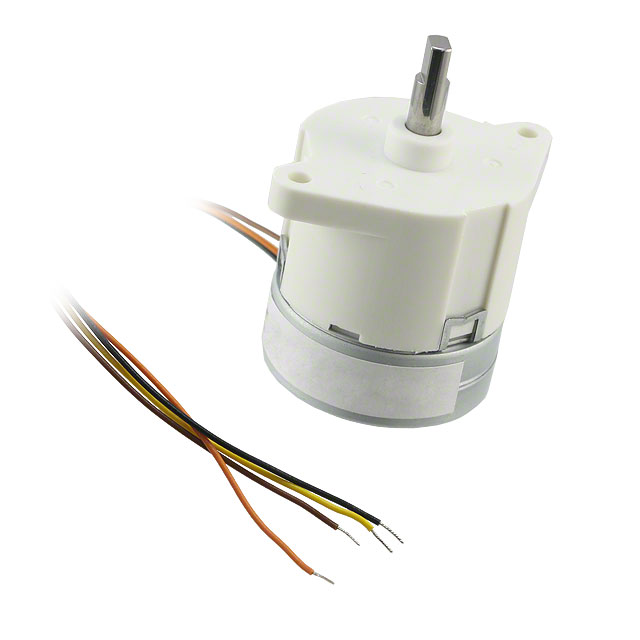

PG35S-D48-HHC2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PG35S-D48-HHC2 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	PG35S-D48-HHC2
Manufacturer	NMB Technologies Corp.
Description	STEP MOTOR PM GEARED BIPOLAR 24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 3036 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	25 pcs
	$13.39	$13.16	$12.929	$12.698
	$12.467	$12.282	$12.005

Product parameter
Data sheet

Product parameter

Part Number	PG35S-D48-HHC2	Manufacturer	NMB Technologies Corp.
Description	STEP MOTOR PM GEARED BIPOLAR 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3036 pcs	Data sheet	PG35S-D48-HHC2 Datasheet PG35S-D48-HHC2 Spec
Category	Motors, Solenoids, Driver Boards/Modules	Weight	-
Voltage - Rated	24VDC	Type	Permanent Magnet Gear Motor
Torque - Holding (oz-in / mNm)	99.1 / 700	Termination Style	Wire Leads
Steps per Revolution	1698	Step Angle	0.212°
Size / Dimension	Round - 1.378" Dia (35.00mm)	Series	PG
Rotor Inertia	-	Other Names	P14336 PG35S-D48-HHC2B PG35SD48HHC2
Operating Temperature	-	Mounting Hole Spacing	1.650" (42.00mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Shaft and Bearing	0.709" (18.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Double Flatted Shaft	Diameter - Shaft	0.197" (5.00mm)
Detailed Description	Bipolar Stepper Motor 250mA 24VDC	Current Rating	250mA
Coil Type	Bipolar	Coil Resistance	28 Ohms
Approvals	-	Accuracy	-
