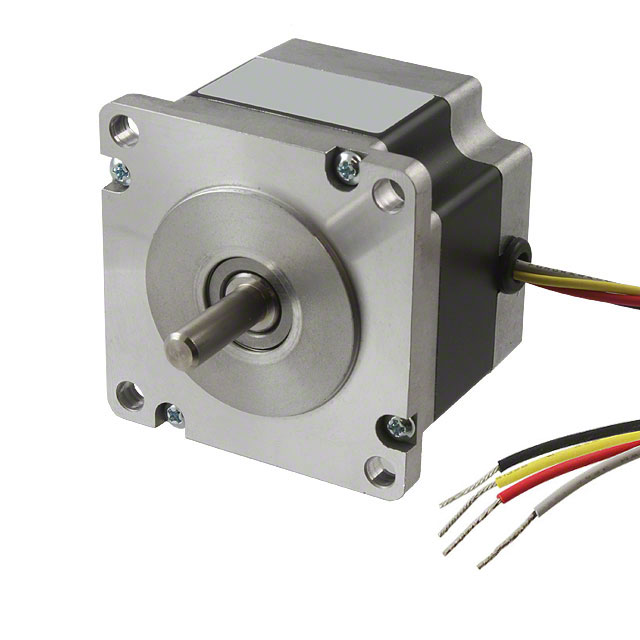

23H018D10B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 23H018D10B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 23H018D10B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 23H018D10B |
|---|---|
| Manufacturer | Portescap |
| Description | STEP MOTOR HYBRID BIPOLAR 5.7V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 23H018D10B | Manufacturer | Portescap |
|---|---|---|---|
| Description | STEP MOTOR HYBRID BIPOLAR 5.7V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4519 pcs | Data sheet | 23Hx18DH3 Hybrid Motor Part NumberingStepper Hybrid TechnologyH3 Wiring Diagram |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 1 lb (453.59g) |
| Voltage - Rated | 5.7VDC | Type | Hybrid |
| Torque - Holding (oz-in / mNm) | 75 / 530 | Termination Style | Wire Leads |
| Steps per Revolution | 200 | Step Angle | 1.8° |
| Size / Dimension | Square - 2.250" x 2.250" (57.15mm x 57.15mm) | Series | H3 |
| Rotor Inertia | 190gcm² | Other Names | 403-1038 |
| Operating Temperature | -20°C ~ 40°C | NEMA Frame Size | 23 |
| Mounting Hole Spacing | 1.856" (47.14mm) | Length - Shaft and Bearing | 0.810" (20.57mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Round Shaft |
| Diameter - Shaft | 0.250" (6.35mm) | Detailed Description | Bipolar Stepper Motor Frame Size 23 200 Step 1A 5.7VDC |
| Current Rating | 1A | Coil Type | Bipolar |
| Coil Resistance | 5.7 Ohms | Approvals | CE, UL |
| Accuracy | ±5% |
