17PY-Z053-99VS

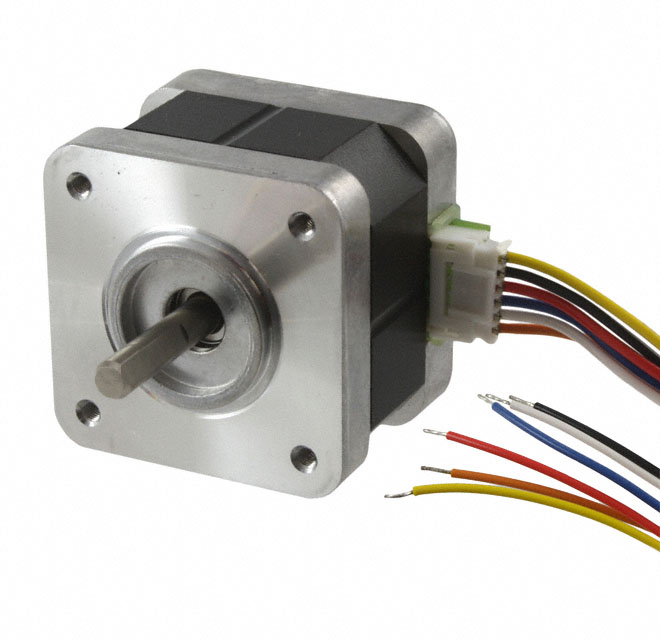

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 17PY-Z053-99VS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 17PY-Z053-99VS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 17PY-Z053-99VS |
|---|---|
| Manufacturer | NMB Technologies Corp. |
| Description | STEP MOTOR HYBRID DUAL SHAFT 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | ||
|---|---|---|---|---|---|
| $18.543 | $18.222 | $17.902 | |||
| 25 pcs | 50 pcs | 100 pcs | |||
| $17.582 | $17.263 | $17.007 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 17PY-Z053-99VS | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | STEP MOTOR HYBRID DUAL SHAFT 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2287 pcs | Data sheet | Hybrid Stepping Motor Standard Type17PY-Z |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.441 lb (200.03g) |
| Voltage - Rated | 24VDC | Type | Hybrid, Dual Shaft |
| Torque - Holding (oz-in / mNm) | 22.7 / 160 | Termination Style | Wire Leads with Connector |
| Steps per Revolution | 400 | Step Angle | 0.9° |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | Series | 17PY |
| Rotor Inertia | 37gcm² | Other Names | 17PYZ05399VS P14296 |
| Operating Temperature | -10°C ~ 50°C | NEMA Frame Size | 17 |
| Mounting Hole Spacing | 1.220" (31.00mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 4 Weeks | Length - Shaft and Bearing | 0.787" (20.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Flatted Shaft |
| Diameter - Shaft | 0.197" (5.00mm) | Detailed Description | Unipolar Stepper Motor 400 Step 0.85A 24VDC |
| Current Rating | 850mA | Coil Type | Unipolar |
| Coil Resistance | 4.2 Ohms | Approvals | - |
| Accuracy | ±5% |
