1766369
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1766369 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1766369 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1766369 |
|---|---|
| Manufacturer | Phoenix Contact |

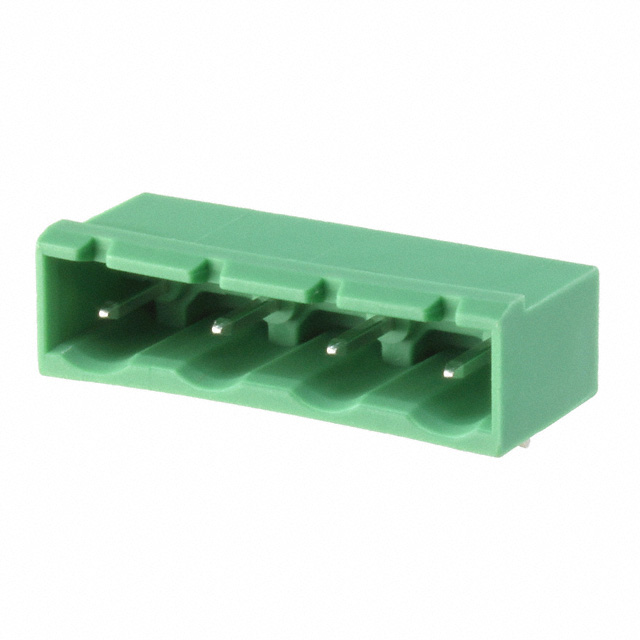

| Description | TERM BLOCK HDR 4POS 90DEG 7.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.901 | $0.864 | $0.826 | $0.803 | $0.751 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.691 | $0.638 | $0.608 | $0.571 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1766369 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 4POS 90DEG 7.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53165 pcs | Data sheet | 1766369 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 630V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON GMSTBA |
| Screw Size | - | Positions Per Level | 4 |
| Plug Wire Entry | - | Pitch | 0.295" (7.50mm) |
| Packaging | Bulk | Other Names | 1766369-ND 277-6290 GMSTBA2,5/4-G |
| Operating Temperature | - | Number of Positions | 4 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.339" (8.61mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.295" (7.50mm) 90°, Right Angle Through Hole |
| Current - UL | 15A | Current - IEC | 12A |
| Contact Tail Length | 0.138" (3.50mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
