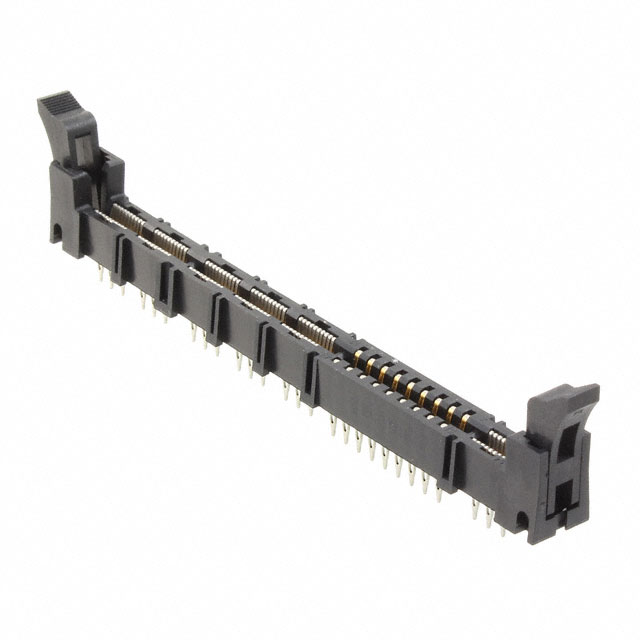

1766436-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1766436-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1766436-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1766436-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN EDGE DUAL FMALE 30POS 0.098 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.808 | $3.641 | $3.31 | $3.145 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.062 | $2.731 | $2.565 | $2.267 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1766436-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 30POS 0.098 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14294 pcs | Data sheet | 1766436 |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Series | Mini Crown Edge, Elcon | Read Out | Dual |
| Pitch | 0.098" (2.50mm) | Packaging | Bulk |
| Other Names | 1766436-1-ND 17664361 283-0172-04003 A101952 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions/Bay/Row | 1; 9; 1; 1; 1; 1; 1 |
| Number of Positions | 30 (18 + 12 Power) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Material - Insulation | Thermoplastic, Glass Filled |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | Latches | Contact Type | - |
| Contact Material | Copper Alloy | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Color | Black |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.062" (1.57mm) |
