1766336-1

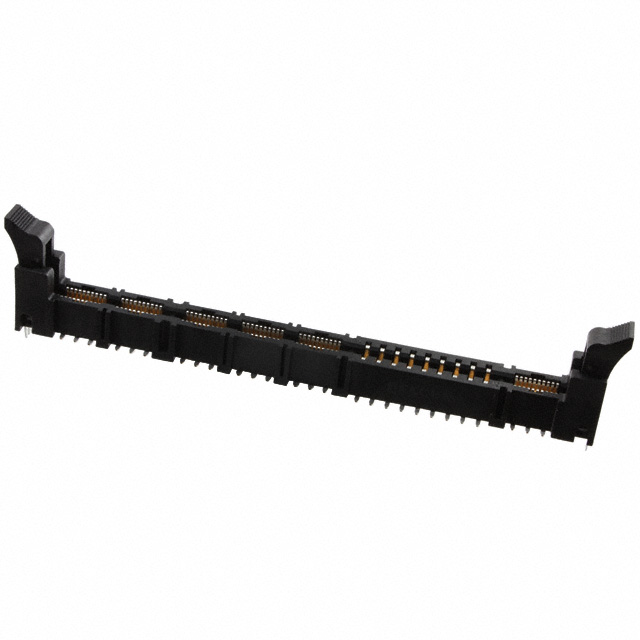

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1766336-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1766336-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1766336-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN CROWN EDGE FMALE 30POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 26 pcs | 52 pcs | |
|---|---|---|---|---|---|
| $4.313 | $3.921 | $3.823 | $3.529 | ||
| 104 pcs | 260 pcs | 520 pcs | 1014 pcs | ||
| $3.333 | $3.039 | $2.842 | $2.607 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1766336-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN CROWN EDGE FMALE 30POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12733 pcs | Data sheet | 1766336 |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | Mini Crown Edge, Elcon | Read Out | Dual |
| Pitch | - | Packaging | Tray |
| Other Names | 17663361 283-172-3003 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions/Bay/Row | 1; 9; 1; 1; 1; 1; 1 |
| Number of Positions | 30 (18 + 12 Power) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Material - Insulation | Polyester, Glass Filled |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | Board Lock, Latches | Contact Type | - |
| Contact Material | Copper Alloy | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Color | Black |
| Card Type | VRM | Card Thickness | 0.062" (1.57mm) |
