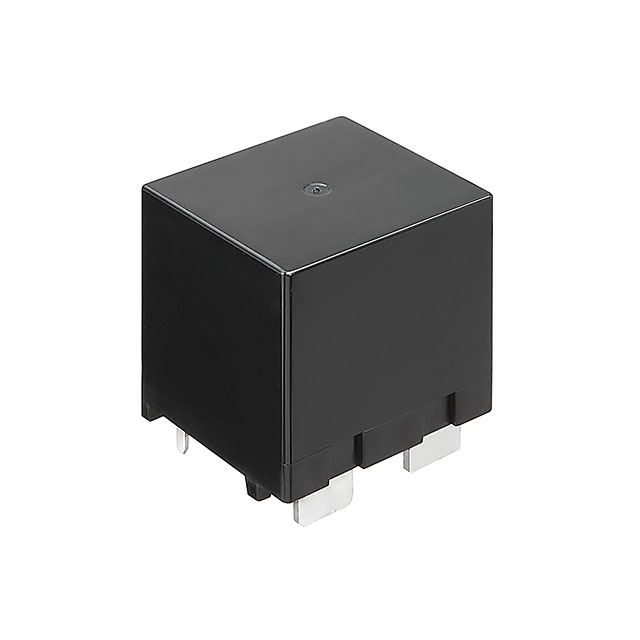

HE1AN-P-DC24V
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HE1AN-P-DC24V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HE1AN-P-DC24V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HE1AN-P-DC24V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPST 30A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.479 | $6.649 | $6.316 | $5.984 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.651 | $5.153 | $4.82 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HE1AN-P-DC24V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 30A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6851 pcs | Data sheet | HE Series, PV Type |
| Category | Relays | Turn On Voltage (Max) | 16.8 VDC |
| Turn Off Voltage (Min) | 2.4 VDC | Termination Style | PC Pin |
| Switching Voltage | 277VAC, 30VDC - Max | Series | HE |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 255-1644 HE1ANPDC24V |
| Operating Temperature | -50°C ~ 55°C | Operate Time | 30ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | - | Detailed Description | General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole |
| Contact Rating (Current) | 30A | Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | SPST-NO (1 Form A) | Coil Voltage | 24VDC |
| Coil Type | Non Latching | Coil Resistance | 300 Ohms |
| Coil Power | 1.92 W | Coil Current | 80.0mA |
