AN48840B-NL

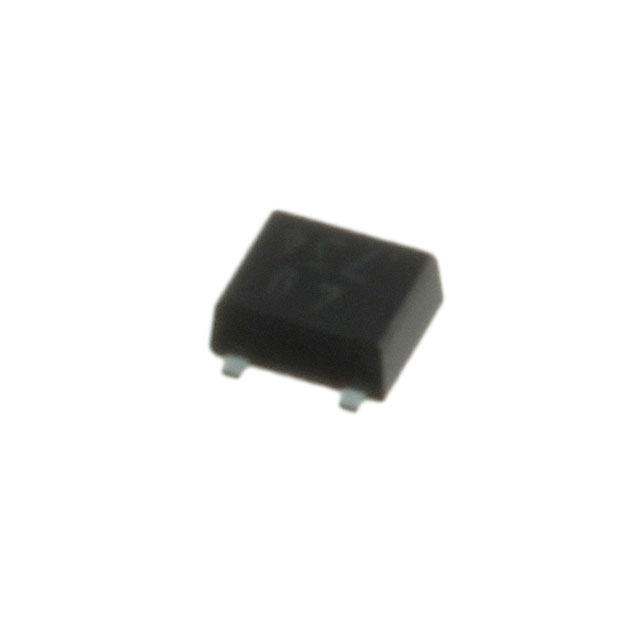

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AN48840B-NL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AN48840B-NL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AN48840B-NL |
|---|---|
| Manufacturer | Panasonic |
| Description | MAGNET SWITCH BIPOLAR SMINI-5DA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $0.699 | $0.661 | $0.567 | $0.454 | ||
| 50 pcs | 100 pcs | 500 pcs | 1000 pcs | ||
| $0.416 | $0.378 | $0.331 | $0.293 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AN48840B-NL | Manufacturer | Panasonic |
|---|---|---|---|
| Description | MAGNET SWITCH BIPOLAR SMINI-5DA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78773 pcs | Data sheet | AN48840B Datasheet |
| Category | Sensors, Transducers | Voltage - Supply | 2.5 V ~ 3.5 V |
| Test Condition | 25°C | Technology | Hall Effect |
| Supplier Device Package | SMINI-5DA | Series | - |
| Sensing Range | 8mT Trip, -8mT Release | Polarization | South Pole |
| Packaging | Original-Reel® | Package / Case | 6-SMD (5 Leads), Flat Lead |
| Output Type | Push-Pull | Other Names | AN48840B-NLDKR |
| Operating Temperature | -25°C ~ 75°C (TA) | Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Function | Bipolar Switch |
| Features | - | Detailed Description | Digital Switch Bipolar Switch Push-Pull Hall Effect SMINI-5DA |
| Current - Supply (Max) | 85µA | Current - Output (Max) | 15mA |
