AN44075A-VF

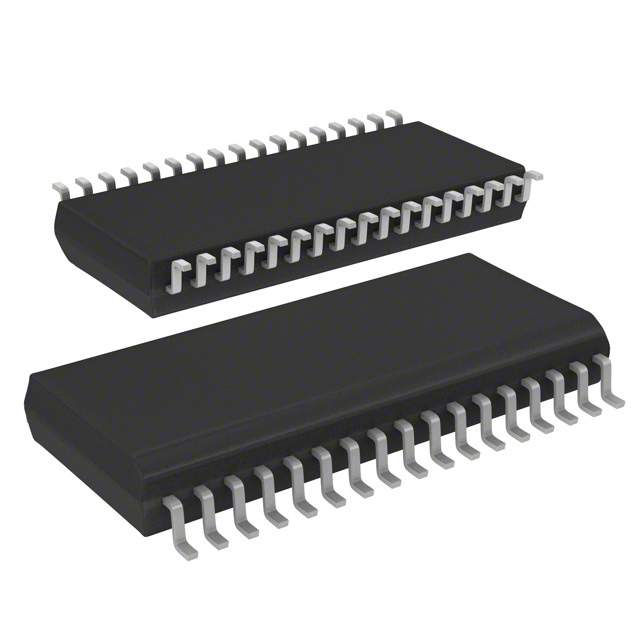

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AN44075A-VF with confidence from Components-World.HK, 1 Year Warranty
Dowload AN44075A-VF Details in PDFSee Product Specifications for product details.
Buy AN44075A-VF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AN44075A-VF |
|---|---|
| Manufacturer | Panasonic |
| Description | IC MOTOR DRIVER PAR 34HSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.008 | $0.909 | $0.812 | $0.731 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.649 | $0.568 | $0.471 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AN44075A-VF | Manufacturer | Panasonic |
|---|---|---|---|
| Description | IC MOTOR DRIVER PAR 34HSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70979 pcs | Data sheet | AN44075A Datasheet |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 10 V ~ 35 V |
| Voltage - Load | 10 V ~ 35 V | Technology | BiCDMOS |
| Supplier Device Package | 34-HSOP | Step Resolution | - |
| Series | - | Packaging | Cut Tape (CT) |
| Package / Case | 34-TSOP (0.240", 6.10mm Width) Exposed Pad | Output Configuration | Half Bridge (2) |
| Other Names | AN44075A-VFCT AN44075AVF |
Operating Temperature | -20°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | Parallel |
| Function | Driver - Fully Integrated, Control and Power Stage | Detailed Description | Motor Driver BiCDMOS Parallel 34-HSOP |
| Current - Output | 3A | Base Part Number | AN44075A |
| Applications | General Purpose |
