AN44142A-VB

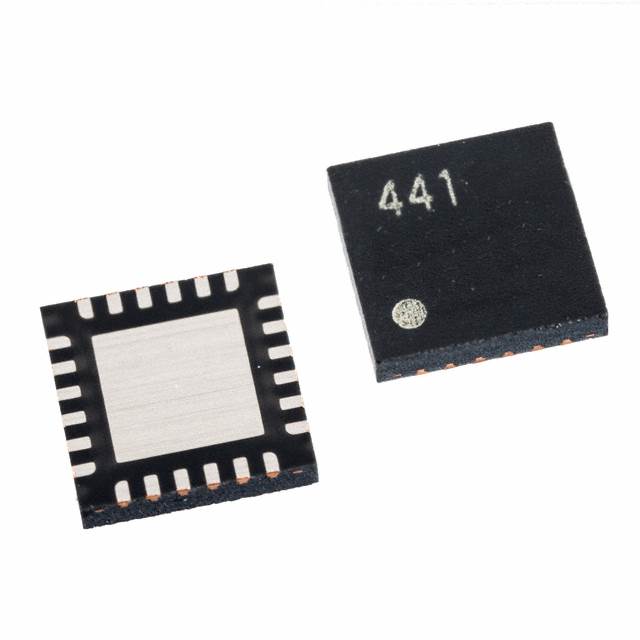

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AN44142A-VB with confidence from Components-World.HK, 1 Year Warranty
Dowload AN44142A-VB Details in PDFSee Product Specifications for product details.
Buy AN44142A-VB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AN44142A-VB |
|---|---|
| Manufacturer | Panasonic |
| Description | IC MOTOR DRIVER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | ||||
|---|---|---|---|---|---|
| $0.344 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AN44142A-VB | Manufacturer | Panasonic |
|---|---|---|---|
| Description | IC MOTOR DRIVER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66595 pcs | Data sheet | AN44142A-VB DatasheetAN441xxA Series New Product Introduction |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 4.5 V ~ 26.4 V |
| Voltage - Load | 4.5 V ~ 26.4 V | Technology | Power MOSFET |
| Supplier Device Package | 24-HQFN (4x4) | Series | - |
| Rds On (Typ) | 1 Ohm | Packaging | Tape & Reel (TR) |
| Package / Case | 24-WFQFN Exposed Pad | Output Configuration | Half Bridge (3) |
| Other Names | AN44142AVB | Operating Temperature | -40°C ~ 95°C (TA) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 20 Weeks | Load Type | Inductive |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Interface | Logic |
| Features | - | Fault Protection | Current Limiting, Over Temperature, Over Voltage, UVLO |
| Detailed Description | Half Bridge (3) Driver DC Motors, General Purpose Power MOSFET 24-HQFN (4x4) | Current - Peak Output | - |
| Current - Output / Channel | - | Applications | DC Motors, General Purpose |
