16SVF180M

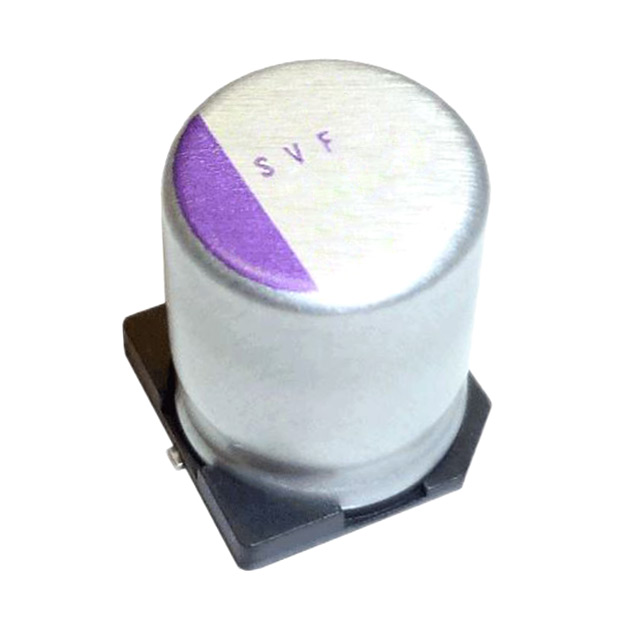

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 16SVF180M with confidence from Components-World.HK, 1 Year Warranty
Dowload 16SVF180M Details in PDFSee Product Specifications for product details.
Buy 16SVF180M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 16SVF180M |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP ALUM POLY 180UF 20% 16V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.639 | $0.506 | $0.379 | $0.287 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 16SVF180M | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP ALUM POLY 180UF 20% 16V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82989 pcs | Data sheet | SVPK, SVF, SEF, OS-CON™ Series, Prod InfoSVF Series Datasheet*OS-CON™ Capacitors Product CatalogConductive Poly Alum Caps, Part Number GuideConductive Poly Alum Solid Caps, Product Guide |
| Category | Capacitors | Voltage - Rated | 16V |
| Type | Polymer | Tolerance | ±20% |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Size / Dimension | 0.248" Dia (6.30mm) |
| Series | OS-CON™, SVF | Ripple Current @ Low Frequency | 52mA @ 120Hz |
| Ripple Current @ High Frequency | 1.04A @ 100kHz | Ratings | - |
| Packaging | Cut Tape (CT) | Package / Case | Radial, Can - SMD |
| Other Names | P122101CT | Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Lead Spacing | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.236" (6.00mm) | ESR (Equivalent Series Resistance) | 22 mOhm |
| Detailed Description | 180µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 22 mOhm 1000 Hrs @ 125°C | Capacitance | 180µF |
| Applications | General Purpose |
