Home > Products > Capacitors > Film Capacitors > 16ST685MC24532

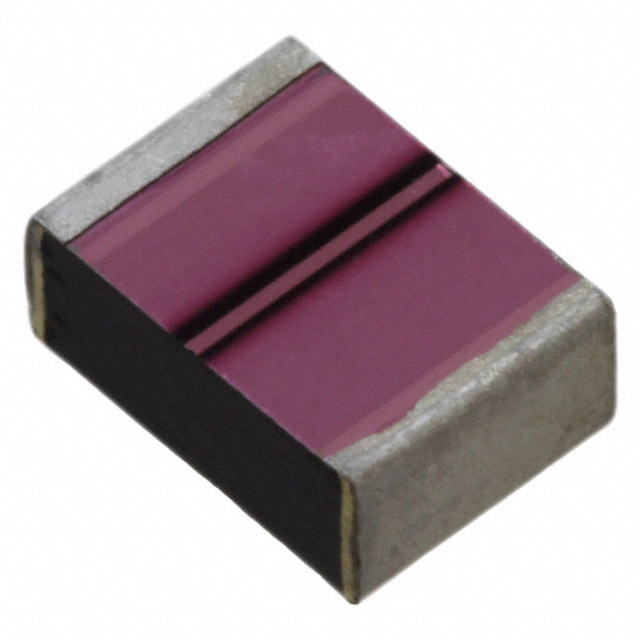

16ST685MC24532

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 16ST685MC24532 with confidence from Components-World.HK, 1 Year Warranty

Dowload 16ST685MC24532 Details in PDF

Request a Quote

Part Number	16ST685MC24532
Manufacturer	Rubycon
Description	CAP FILM 6.8UF 20% 16VDC 1812
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 27381 pcs
Reference Price (In US Dollars)	600 pcs
Reference Price (In US Dollars)	$1.237

Product parameter

Product parameter

Part Number	16ST685MC24532	Manufacturer	Rubycon
Description	CAP FILM 6.8UF 20% 16VDC 1812	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27381 pcs	Data sheet
Category	Capacitors	Voltage Rating - DC	16V
Voltage Rating - AC	-	Tolerance	±20%
Termination	Solder Pads	Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Series	PMLCAP®, ST	Ratings	-
Packaging	Tape & Reel (TR)	Package / Case	1812 (4532 Metric)
Other Names	1189-1799-2	Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	5 (48 Hours)
Lead Spacing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.071" (1.80mm)	Features	-
Dielectric Material	Acrylic, Metallized	Detailed Description	6.8µF Film Capacitor 16V Acrylic, Metallized 1812 (4532 Metric)
Capacitance	6.8µF	Applications	DC Link, DC Filtering
