16SVP22M

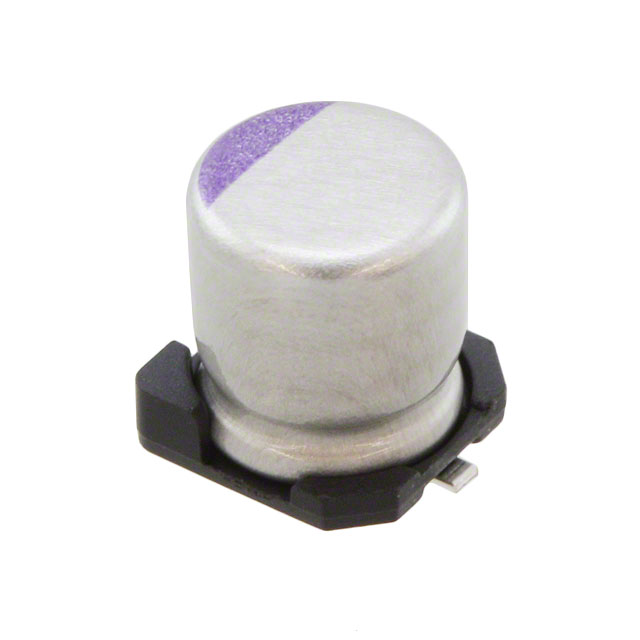

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 16SVP22M with confidence from Components-World.HK, 1 Year Warranty
Dowload 16SVP22M Details in PDFSee Product Specifications for product details.
Buy 16SVP22M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 16SVP22M |
|---|---|
| Manufacturer | Panasonic |
| Description | CAP ALUM POLY 22UF 20% 16V SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | 3000 pcs | 4500 pcs | 10500 pcs | 15000 pcs |
|---|---|---|---|---|---|
| $0.148 | $0.138 | $0.134 | $0.129 | $0.128 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 16SVP22M | Manufacturer | Panasonic |
|---|---|---|---|
| Description | CAP ALUM POLY 22UF 20% 16V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 186968 pcs | Data sheet | 16SVP22M View All Specifications |
| Category | Capacitors | Voltage - Rated | 16V |
| Type | Polymer | Tolerance | ±20% |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Size / Dimension | 0.197" Dia (5.00mm) |
| Series | OS-CON™, SVP | Ripple Current @ Low Frequency | 53mA @ 120Hz |
| Ripple Current @ High Frequency | 1.06A @ 100kHz | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Radial, Can - SMD |
| Other Names | P16462TR | Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Lead Spacing | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.236" (6.00mm) | ESR (Equivalent Series Resistance) | 90 mOhm |
| Detailed Description | 22µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 90 mOhm 2000 Hrs @ 105°C | Capacitance | 22µF |
| Applications | General Purpose |
