OPI7002

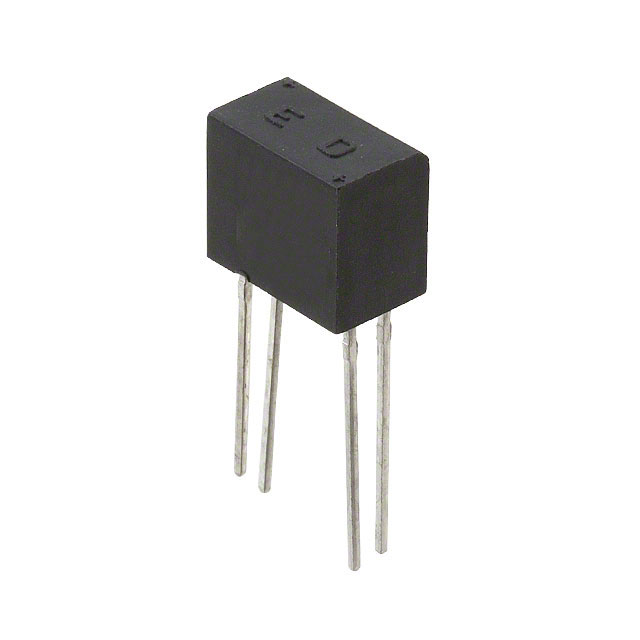

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OPI7002 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy OPI7002 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | OPI7002 |
|---|---|
| Manufacturer | Optek Technology / TT Electronics |
| Description | OPTOISOLATR 6KV TRANSISTOR 4-DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 100 pcs | 250 pcs | ||
|---|---|---|---|---|---|
| $0.80 | $0.769 | $0.738 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.711 | $0.688 | $0.665 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | OPI7002 | Manufacturer | Optek Technology / TT Electronics |
|---|---|---|---|
| Description | OPTOISOLATR 6KV TRANSISTOR 4-DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48521 pcs | Data sheet | OPI7002/7010 |
| Category | Isolators | Voltage - Output (Max) | 30V |
| Voltage - Isolation | 6000VDC | Voltage - Forward (Vf) (Typ) | 1.2V |
| Vce Saturation (Max) | 400mV | Turn On / Turn Off Time (Typ) | 4µs, 3µs |
| Supplier Device Package | 4-DIP | Series | - |
| Rise / Fall Time (Typ) | - | Packaging | Tube |
| Package / Case | 4-DIP (0.300", 7.62mm) | Output Type | Transistor |
| Other Names | 365-1854 OPI7002-ND |
Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor Output 6000VDC 1 Channel 4-DIP | Current Transfer Ratio (Min) | 20% @ 10mA |
| Current Transfer Ratio (Max) | - | Current - Output / Channel | - |
| Current - DC Forward (If) (Max) | 50mA |
