OPI211

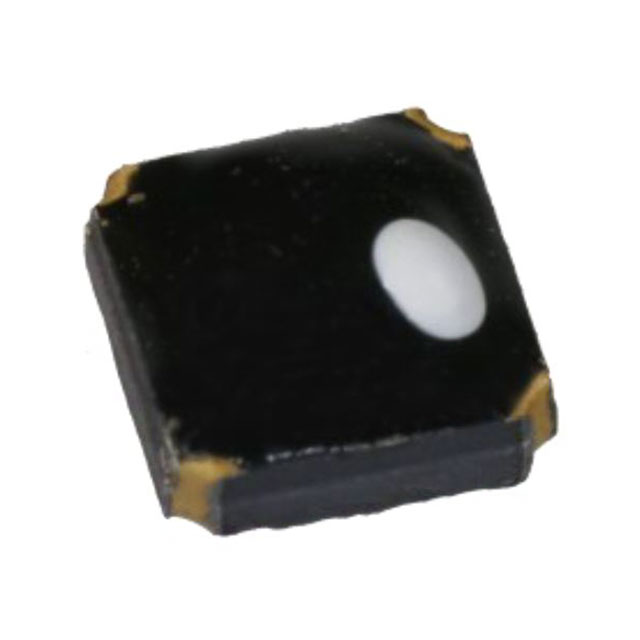

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OPI211 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy OPI211 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | OPI211 |
|---|---|
| Manufacturer | Optek Technology / TT Electronics |
| Description | OPTOISOLATR 1KV TRANSISTOR 4-SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | OPI211 | Manufacturer | Optek Technology / TT Electronics |
|---|---|---|---|
| Description | OPTOISOLATR 1KV TRANSISTOR 4-SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5475 pcs | Data sheet | OPI210,211 |
| Category | Isolators | Voltage - Output (Max) | 35V |
| Voltage - Isolation | 1000VDC | Voltage - Forward (Vf) (Typ) | 1.6V (Max) |
| Vce Saturation (Max) | 300mV | Turn On / Turn Off Time (Typ) | - |
| Supplier Device Package | 4-SMD | Series | - |
| Rise / Fall Time (Typ) | 3µs, 3µs | Packaging | Bulk |
| Package / Case | 4-SMD, No Lead | Output Type | Transistor |
| Operating Temperature | -55°C ~ 125°C | Number of Channels | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Type | DC |
| Detailed Description | Optoisolator Transistor Output 1000VDC 1 Channel 4-SMD | Current Transfer Ratio (Min) | 200% @ 10mA |
| Current Transfer Ratio (Max) | - | Current - Output / Channel | - |
| Current - DC Forward (If) (Max) | 50mA |
