Home > Products > Isolators > Optoisolators - Logic Output > OPI155

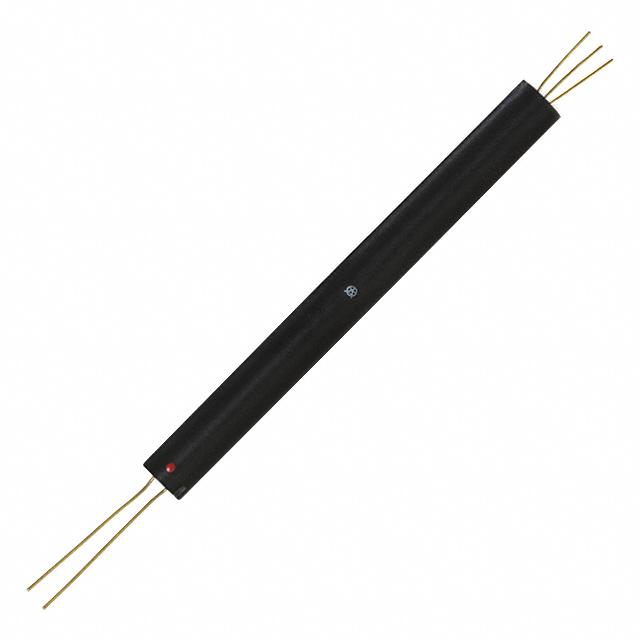

OPI155

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy OPI155 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	OPI155
Manufacturer	Optek Technology / TT Electronics
Description	OPTOISO 50KV OPEN COLLECTOR
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1612 pcs
Reference Price (In US Dollars)	1 pcs	100 pcs
Reference Price (In US Dollars)	$23.342	$22.41

Product parameter
Data sheet

Product parameter

Part Number	OPI155	Manufacturer	Optek Technology / TT Electronics
Description	OPTOISO 50KV OPEN COLLECTOR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1612 pcs	Data sheet	OPI150/153/155
Category	Isolators	Voltage - Supply	7V
Voltage - Isolation	50000VDC	Voltage - Forward (Vf) (Typ)	1.2V
Supplier Device Package	-	Series	-
Rise / Fall Time (Typ)	-	Propagation Delay tpLH / tpHL (Max)	70ns, 120ns
Packaging	Bulk	Package / Case	-
Output Type	Open Collector, Schottky Clamped	Other Names	365-1034
Operating Temperature	-40°C ~ 85°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inputs - Side 1/Side 2	1/0	Input Type	DC
Detailed Description	Logic Output Optoisolator 5Mbps Open Collector, Schottky Clamped 50000VDC 1 Channel	Data Rate	5Mbps
Current - Output / Channel	25mA	Current - DC Forward (If) (Max)	50mA
Common Mode Transient Immunity (Min)	-
