XG8V-2044

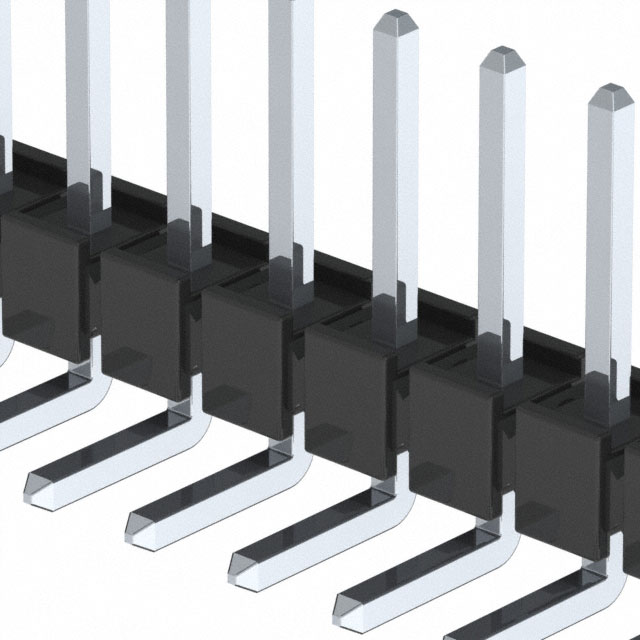

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XG8V-2044 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XG8V-2044 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XG8V-2044 |
|---|---|
| Manufacturer | Omron |
| Description | PLUG 20POS SINGLE ROW RIGHT ANGL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | XG8V-2044 | Manufacturer | Omron |
|---|---|---|---|
| Description | PLUG 20POS SINGLE ROW RIGHT ANGL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4606 pcs | Data sheet | XG8 Series |
| Category | Connectors, Interconnects | Voltage Rating | 300V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | XG8 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | XG8V2044 XG8V2044NC |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.110" (2.79mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass, Nickel | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | 0.236" (6.00mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
