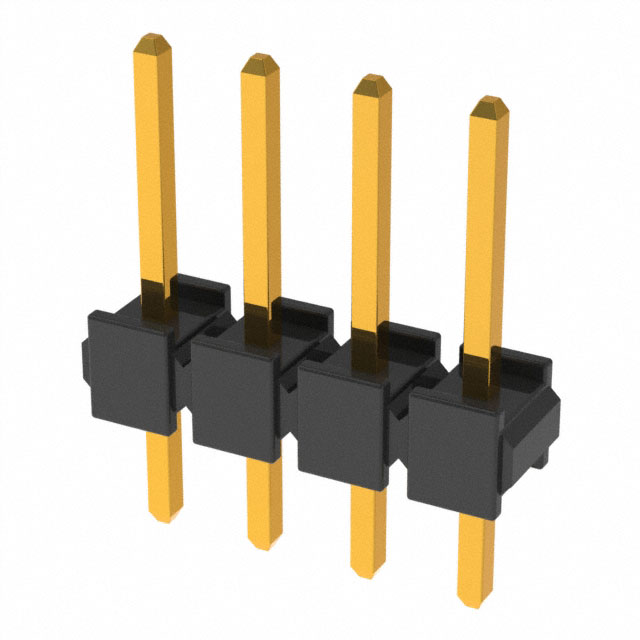

XG8V-0431
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XG8V-0431 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XG8V-0431 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XG8V-0431 |
|---|---|
| Manufacturer | Omron |
| Description | JUMPER PLUG 4POS SING ROW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.10 | $0.093 | $0.065 | $0.056 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.047 | $0.04 | $0.038 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | XG8V-0431 | Manufacturer | Omron |
|---|---|---|---|
| Description | JUMPER PLUG 4POS SING ROW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 601955 pcs | Data sheet | XG8 Series |
| Category | Connectors, Interconnects | Voltage Rating | 300V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | XG8 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.453" (11.50mm) |
| Other Names | XG8V-0431-ND XG8V0431 XG8V0431-ND Z8748 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.098" (2.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 4 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass, Nickel |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | 0.236" (6.00mm) |
| Contact Finish Thickness - Post | 5.90µin (0.150µm) | Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
