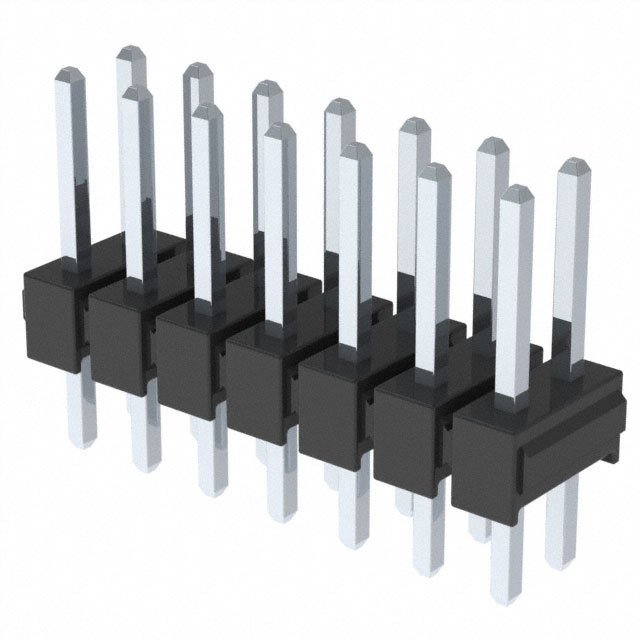

XG8W-1441
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XG8W-1441 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XG8W-1441 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XG8W-1441 |
|---|---|
| Manufacturer | Omron |
| Description | CONN PLUG 14POS DBL ROW STR TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.257 | $0.242 | $0.185 | $0.161 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.133 | $0.117 | $0.116 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | XG8W-1441 | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN PLUG 14POS DBL ROW STR TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 180226 pcs | Data sheet | XG8 SeriesXGx and XJ8 Guide |
| Category | Connectors, Interconnects | Voltage Rating | 300V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | XG8 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.453" (11.50mm) |
| Other Names | OR1107 XG8W-1441-ND XG8W1441 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 25 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.098" (2.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 14 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass, Nickel |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | 0.236" (6.00mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
