XF2J-1424-11
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XF2J-1424-11 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XF2J-1424-11 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XF2J-1424-11 |
|---|---|
| Manufacturer | Omron |
| Description | CONN FPC VERT 14POS 0.50MM SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | XF2J-1424-11 | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FPC VERT 14POS 0.50MM SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4560 pcs | Data sheet | XF2J Series |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | XF2J |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | OR663TR XF2J142411 |
Operating Temperature | -30°C ~ 85°C |
| Number of Positions | 14 | Mounting Type | Surface Mount |
| Mating Cycles | 30 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Housing Material | Polyamide (PA46), Nylon 4/6 | Housing Color | Natural |
| Height Above Board | 0.163" (4.15mm) | Flat Flex Type | FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 14 Position FPC Connector Contacts, Vertical, 1 Sided 0.020" (0.50mm) Surface Mount | Current Rating | 0.5A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 78.7µin (2.00µm) |
| Contact Finish | Tin Alloy | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Tapered | Actuator Material | - |
| Actuator Color | Black |
- Related products
- Related news
Related products
- Part#:
XF2J-1624-11A - Manufacturers:
Omron - Description:
CONN FPC VERT 16POS 0.50MM SMD - In Stock:
55870
- Part#:
XF2J-1824-11A - Manufacturers:
Omron - Description:
CONN FPC VERT 18POS 0.50MM SMD - In Stock:
61292
- Part#:
XF2J-1024-11A-R100 - Manufacturers:
Omron - Description:
CONN FPC VERT 10POS 0.50MM SMD - In Stock:
4182
- Part#:
XF2J-0824-11A - Manufacturers:
Omron - Description:
CONN FPC VERT 8POS 0.50MM SMD - In Stock:
85791
- Part#:
XF2J-162412A - Manufacturers:
Omron - Description:
CONN FPC VERT 16POS 0.50MM SMD - In Stock:
93537
- Part#:

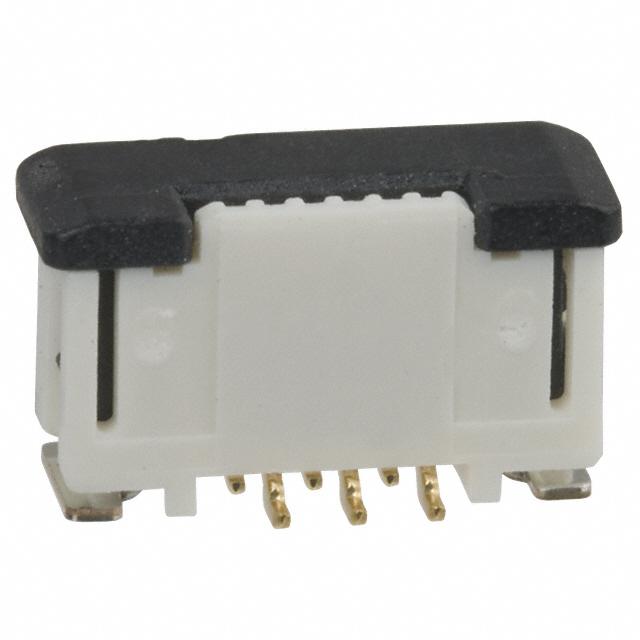

XF2J-1624-11A-R100 - Manufacturers:
