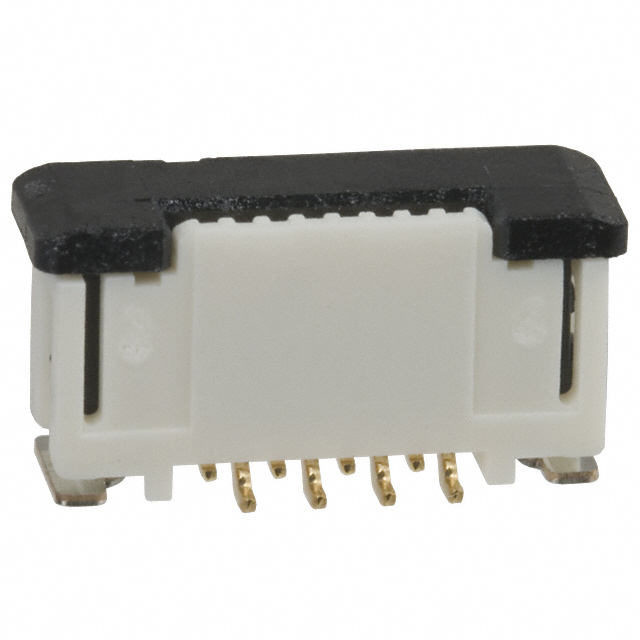

XF2J-0824-11A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XF2J-0824-11A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XF2J-0824-11A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XF2J-0824-11A |
|---|---|
| Manufacturer | Omron |
| Description | CONN FPC VERT 8POS 0.50MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | ||
|---|---|---|---|---|---|
| $0.25 | $0.242 | $0.241 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | XF2J-0824-11A | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FPC VERT 8POS 0.50MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 85791 pcs | Data sheet | XF2J Series |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | XF2J |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | OR734TR XF2J-0824-11A BY OMZ XF2J082411A XF2J082411ABYOMZ |
Operating Temperature | -30°C ~ 85°C |
| Number of Positions | 8 | Mounting Type | Surface Mount |
| Mating Cycles | 30 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA46), Nylon 4/6 | Housing Color | Natural |
| Height Above Board | 0.163" (4.15mm) | Flat Flex Type | FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 8 Position FPC Connector Contacts, Vertical, 1 Sided 0.020" (0.50mm) Surface Mount | Current Rating | 0.5A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 5.90µin (0.150µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Tapered | Actuator Material | - |
| Actuator Color | Black |
