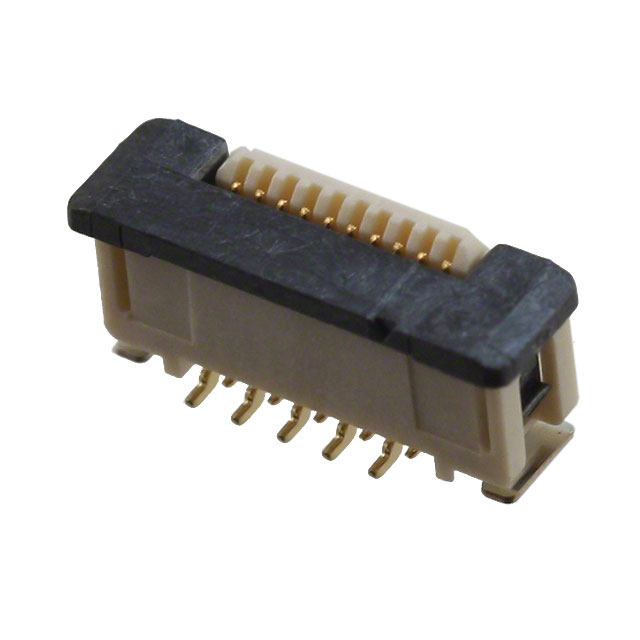

XF2J-102412A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XF2J-102412A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy XF2J-102412A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | XF2J-102412A |
|---|---|
| Manufacturer | Omron |
| Description | CONN FPC VERT 10POS 0.50MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | XF2J-102412A | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FPC VERT 10POS 0.50MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4777 pcs | Data sheet | XF2J Series |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | XF2J |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | OR1005TR XF2J-1024-12A XF2J-1024-12A BY OMZ XF2J102412A XF2J102412ABYOMZ |
Operating Temperature | -30°C ~ 85°C |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 30 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA46), Nylon 4/6 |
| Housing Color | Natural | Height Above Board | 0.163" (4.15mm) |
| Flat Flex Type | FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 10 Position FPC Connector Contacts, Vertical, 1 Sided 0.020" (0.50mm) Surface Mount |
| Current Rating | 0.5A | Contact Material | Copper Alloy |
| Contact Finish Thickness | 5.90µin (0.150µm) | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Vertical, 1 Sided | Cable End Type | Tapered |
| Actuator Material | - | Actuator Color | Black |
