Home > Products > Switches > Snap Action, Limit Switches > D2SW-P2L3T

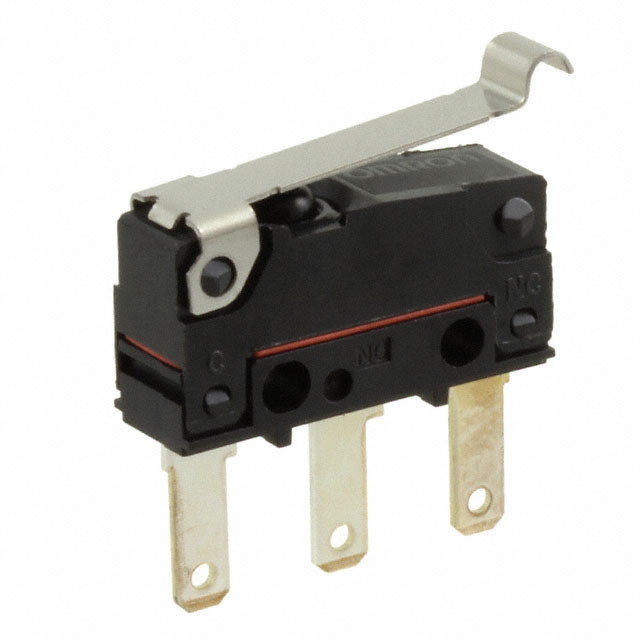

D2SW-P2L3T

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2SW-P2L3T with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2SW-P2L3T
Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 2A 250V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 64299 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.913	$0.842	$0.789	$0.771	$0.614
	$0.579	$0.544	$0.508	$0.473

Product parameter
Data sheet

Product parameter

Part Number	D2SW-P2L3T	Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 2A 250V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	64299 pcs	Data sheet	D2SW-P Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	250V	Termination Style	Quick Connect - 0.110" (2.8mm)
Switch Function	On-Mom	Series	D2SW-P
Release Force	5.099gf	Pretravel	-
Packaging	Bulk	Overtravel	0.030" (0.76mm)
Other Names	D2SW-P2L3T BY OMZ D2SW-P2L3T-ND D2SWP2L3T D2SWP2L3TBYOMZ Z4466	Operating Temperature	-20°C ~ 70°C
Operating Position	0.420" (10.7mm)	Operating Force	61gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	19 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Features	-	Electrical Life	50,000 Cycles
Differential Travel	0.031" (0.8mm)	Current Rating	2A (AC/DC)
Circuit	SPDT	Actuator Type	Lever, Simulated Roller
