Home > Products > Switches > Snap Action, Limit Switches > D2SW-P2L3H

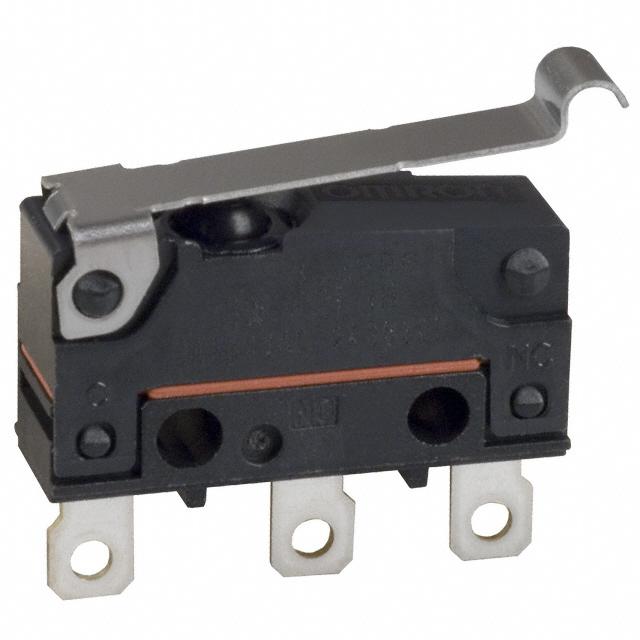

D2SW-P2L3H

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D2SW-P2L3H with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	D2SW-P2L3H
Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 2A 250V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 90431 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.803	$0.741	$0.694	$0.679	$0.54
	$0.509	$0.478	$0.447	$0.417

Product parameter
Data sheet

Product parameter

Part Number	D2SW-P2L3H	Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 2A 250V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	90431 pcs	Data sheet	D2SW-P Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	250V	Termination Style	Solder Lug
Switch Function	On-Mom	Series	D2SW-P
Release Force	5.099gf	Pretravel	-
Packaging	Bulk	Overtravel	0.030" (0.76mm)
Other Names	D2SW-P2L3H BY OMZ D2SWP2L3H D2SWP2L3HBYOMZ SW811 Z2129 Z2129-ND	Operating Temperature	-20°C ~ 70°C
Operating Position	0.420" (10.7mm)	Operating Force	61gf
Mounting Type	Chassis Mount	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	22 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Features	-
Electrical Life	50,000 Cycles	Differential Travel	0.031" (0.8mm)
Current Rating	2A (AC/DC)	Circuit	SPDT
Actuator Type	Lever, Simulated Roller
