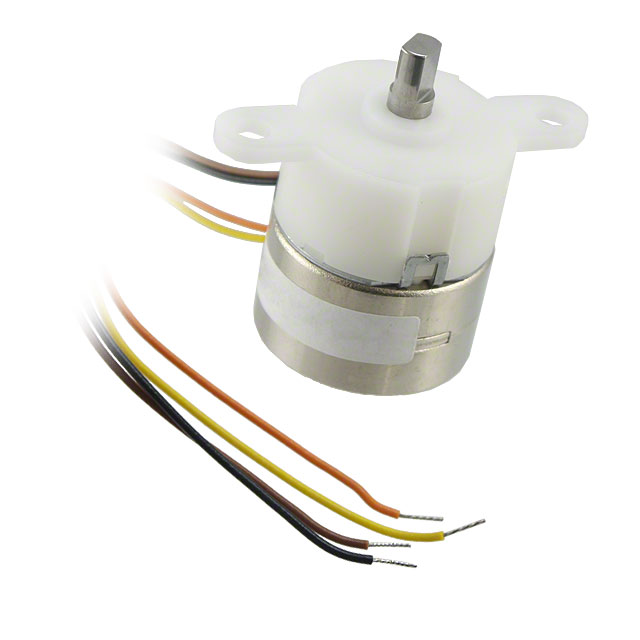

PG25L-D24-HHC1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PG25L-D24-HHC1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PG25L-D24-HHC1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PG25L-D24-HHC1 |
|---|---|
| Manufacturer | NMB Technologies Corp. |
| Description | STEP MOTOR PM GEARED BIPOLAR 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $13.198 | $12.972 | $12.744 | $12.516 | ||
| 50 pcs | 100 pcs | 250 pcs | |||
| $12.289 | $12.107 | $11.834 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PG25L-D24-HHC1 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | STEP MOTOR PM GEARED BIPOLAR 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2815 pcs | Data sheet | PG25L-D24-HHC1 Spec* |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | - |
| Voltage - Rated | 24VDC | Type | Permanent Magnet Gear Motor |
| Torque - Holding (oz-in / mNm) | 63.7 / 450 | Termination Style | Wire Leads |
| Steps per Revolution | 727 | Step Angle | 0.495° |
| Size / Dimension | Round - 0.984" Dia (25.00mm) | Series | PG |
| Rotor Inertia | - | Other Names | P14335 PG25L-D24-HHC1B PG25LD24HHC1 |
| Operating Temperature | - | Mounting Hole Spacing | 1.378" (35.00mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Shaft and Bearing | 0.394" (10.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Double Flatted Shaft | Diameter - Shaft | 0.197" (5.00mm) |
| Detailed Description | Bipolar Stepper Motor 250mA 24VDC | Current Rating | 250mA |
| Coil Type | Bipolar | Coil Resistance | 28 Ohms |
| Approvals | - | Accuracy | - |
