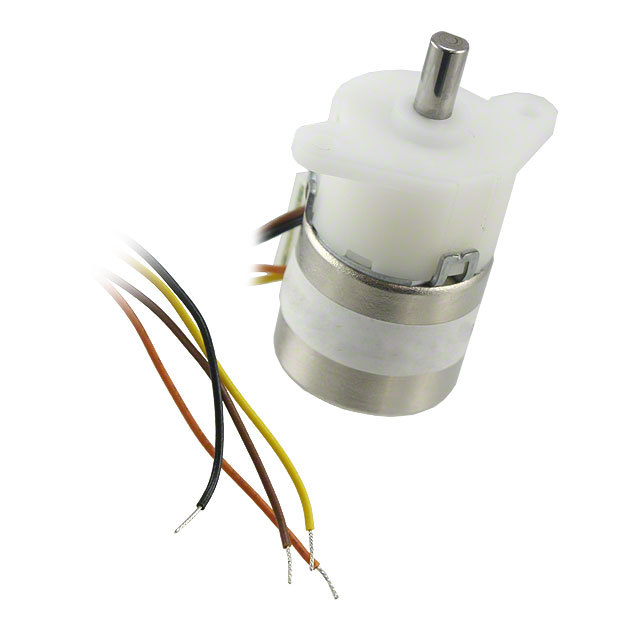

PG20L-D20-HHC0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PG20L-D20-HHC0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PG20L-D20-HHC0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PG20L-D20-HHC0 |
|---|---|
| Manufacturer | NMB Technologies Corp. |
| Description | STEP MOTOR PM GEARED BIPOLAR 10V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $13.29 | $13.062 | $12.833 | $12.604 | ||
| 50 pcs | 100 pcs | 250 pcs | |||
| $12.375 | $12.191 | $11.916 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PG20L-D20-HHC0 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | STEP MOTOR PM GEARED BIPOLAR 10V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3097 pcs | Data sheet | PG20L-D20-HHC0 |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | - |
| Voltage - Rated | 10VDC | Type | Permanent Magnet Gear Motor |
| Torque - Holding (oz-in / mNm) | - | Termination Style | Wire Leads |
| Steps per Revolution | 1818 | Step Angle | 0.198° |
| Size / Dimension | Round - 0.787" Dia (20.00mm) | Series | PG |
| Rotor Inertia | - | Other Names | P14334 PG20L-D20-HHC0B PG20LD20HHC0 |
| Operating Temperature | - | Mounting Hole Spacing | 0.984" (25.00mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Shaft and Bearing | 0.394" (10.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Flatted Shaft | Diameter - Shaft | 0.157" (4.00mm) |
| Detailed Description | Bipolar Stepper Motor 350mA 10VDC | Current Rating | 350mA |
| Coil Type | Bipolar | Coil Resistance | 10 Ohms |
| Approvals | - | Accuracy | - |
