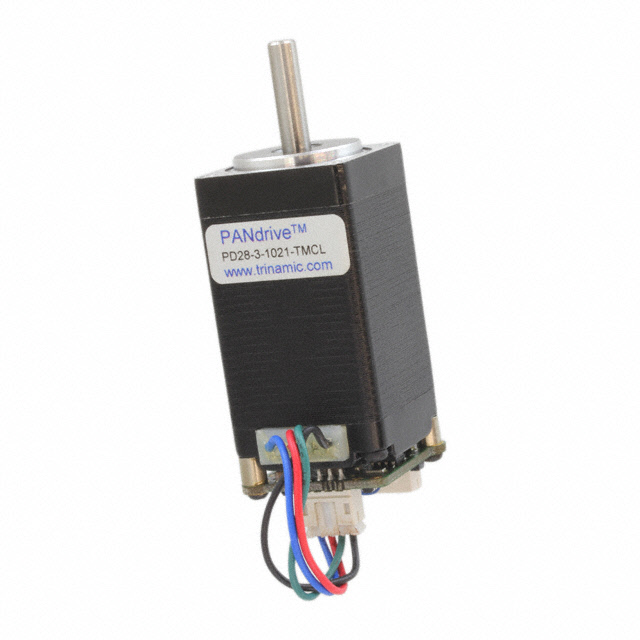

PD28-3-1021-TMCL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PD28-3-1021-TMCL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PD28-3-1021-TMCL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PD28-3-1021-TMCL |
|---|---|
| Manufacturer | TRINAMIC Motion Control GmbH |
| Description | STEPPER MOTOR HYBRID BIPOLAR 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $64.383 | $62.519 | $60.649 | $58.784 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PD28-3-1021-TMCL | Manufacturer | TRINAMIC Motion Control GmbH |
|---|---|---|---|
| Description | STEPPER MOTOR HYBRID BIPOLAR 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 597 pcs | Data sheet | PD-1021 Hardware ManualPD-1021 Firmware ManualPD-1021 Short Spec |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.242 lb (109.77g) |
| Voltage - Rated | 24VDC | Type | Hybrid |
| Torque - Holding (oz-in / mNm) | 16.99 / 120 | Termination Style | Wire Leads with Connector |
| Steps per Revolution | 200 | Step Angle | 1.8° |
| Size / Dimension | Square - 1.100" x 1.100" (28.00mm x 28.00mm) | Series | PANdrive™ |
| Rotor Inertia | - | Other Names | 1460-1098 30-0180 30-0242 PD28-3-1021 |
| Operating Temperature | - | NEMA Frame Size | 11 |
| Mounting Hole Spacing | 0.906" (23.00mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Length - Shaft and Bearing | 0.787" (20.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Integrated Controller, Flatted Shaft |
| Diameter - Shaft | 0.197" (5.00mm) | Detailed Description | Bipolar Stepper Motor Frame Size 11 200 Step 0.7A 24VDC |
| Current Rating | 700mA | Coil Type | Bipolar |
| Approvals | - | Accuracy | - |
