Home > Products > Switches > Pushbutton Switches > UB225KKW01N

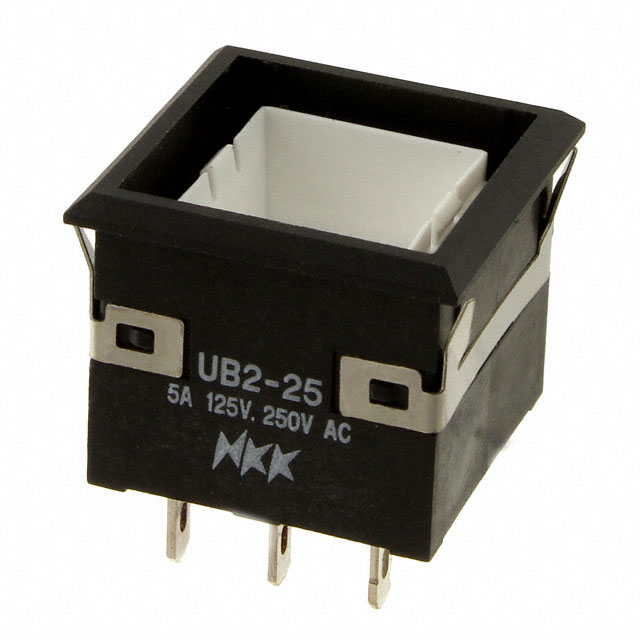

UB225KKW01N

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UB225KKW01N with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UB225KKW01N
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 14141 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.081	$2.854	$2.779	$2.704
	$2.554	$2.479	$2.328	$2.103

Product parameter
Data sheet

Product parameter

Part Number	UB225KKW01N	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14141 pcs	Data sheet	UB2 Series Legend Packet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard
Termination Style	Solder Lug	Switch Function	On-Mom
Series	UB2	Panel Cutout Dimensions	Square - 17.40mm²
Packaging	Bulk	Operating Temperature	-25°C ~ 70°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	8 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	10,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard Panel Mount, Snap-In	Current Rating	5A (AC/DC)
Color - Actuator/Cap	-	Circuit	DPDT
Actuator Type	Plunger for Cap
