Home > Products > Switches > Pushbutton Switches > UB225KKW01CF-1JB

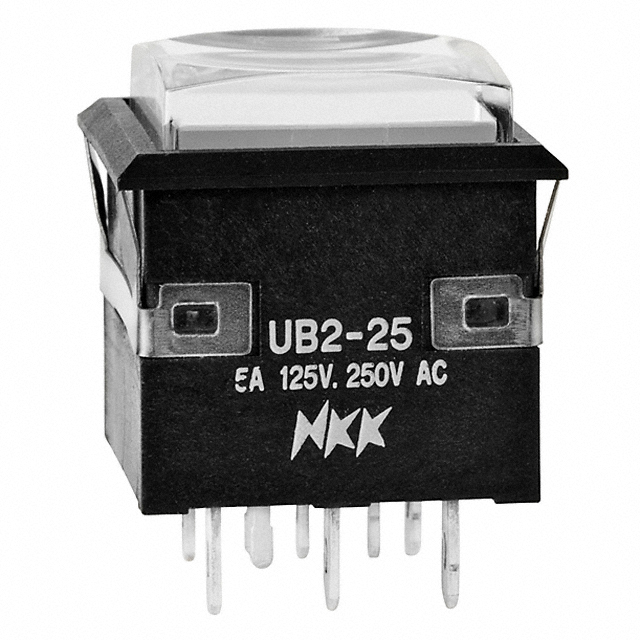

UB225KKW01CF-1JB

UB225KKW01CF-1JB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UB225KKW01CF-1JB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UB225KKW01CF-1JB
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 5A 125V
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 4383 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	UB225KKW01CF-1JB	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 5A 125V	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	4383 pcs	Data sheet	UB2 Series Datasheet
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder Lug	Switch Function	On-Mom
Series	UB2	Panel Cutout Dimensions	Square - 17.40mm²
Packaging	Bulk	Other Names	360-1569
Operating Temperature	-25°C ~ 50°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Ingress Protection	-
Illumination Voltage (Nominal)	2.1, 3.5 VDC	Illumination Type, Color	LED, Red/Green
Features	Epoxy Sealed Terminals	Electrical Life	10,000 Cycles
Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In	Current Rating	5A (AC/DC)
Color - Actuator/Cap	Clear (White Filter/Diffuser)	Circuit	DPDT
Actuator Type	Square, Button
