Home > Products > Switches > Pushbutton Switches > UB225KKW016CF-5J01

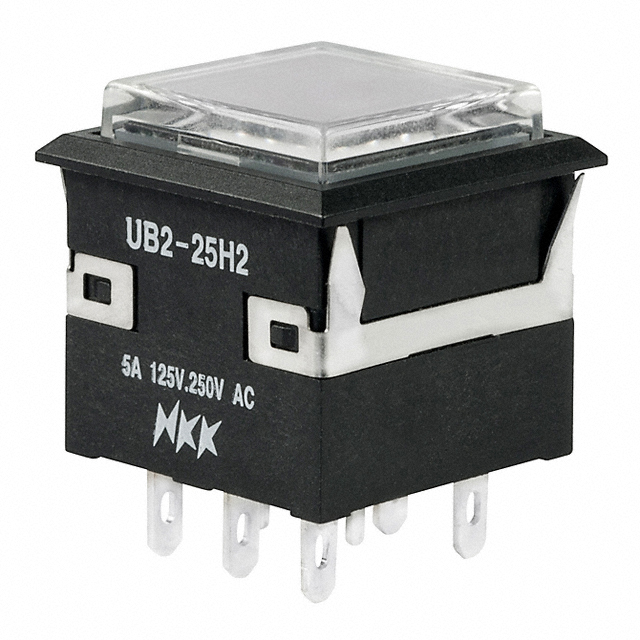

UB225KKW016CF-5J01

UB225KKW016CF-5J01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy UB225KKW016CF-5J01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	UB225KKW016CF-5J01
Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5749 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	UB225KKW016CF-5J01	Manufacturer	NKK Switches
Description	SWITCH PUSHBUTTON DPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5749 pcs	Data sheet	UB2 Low Profile Pushbutton
Category	Switches	Voltage Rating - DC	30V
Voltage Rating - AC	125V	Type	Standard, Illuminated
Termination Style	Solder Lug	Switch Function	On-Mom
Series	UB2	Panel Cutout Dimensions	Square - 17.40mm²
Packaging	Bulk	Operating Temperature	-25°C ~ 50°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	2.1, 3.5 VDC
Illumination Type, Color	LED, Red/Green	Features	ON/OFF Symbol
Electrical Life	10,000 Cycles	Detailed Description	Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In
Current Rating	5A (AC/DC)	Color - Actuator/Cap	Clear
Circuit	DPDT	Actuator Type	Square, Button, Alternating Legend
