Home > Products > Switches > Slide Switches > MS13AFG01

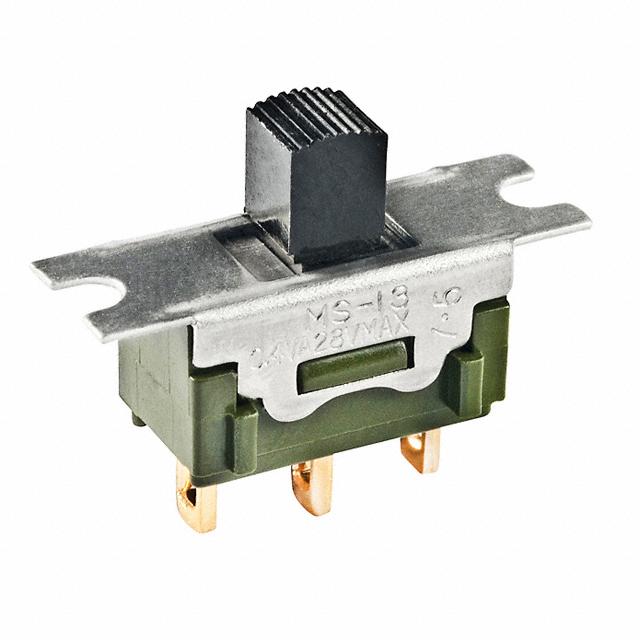

MS13AFG01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS13AFG01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MS13AFG01
Manufacturer	NKK Switches
Description	SWITCH SLIDE SPDT 0.4VA 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 35311 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.524	$1.49	$1.424	$1.259
	$1.242	$1.225	$1.01	$0.944

Product parameter
Data sheet

Product parameter

Part Number	MS13AFG01	Manufacturer	NKK Switches
Description	SWITCH SLIDE SPDT 0.4VA 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	35311 pcs	Data sheet	MS Series Miniature Slides Datasheet
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	28V	Termination Style	Solder Lug
Switch Travel	3.50mm	Switch Function	On-Off-On
Series	MS	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Operating Force	-
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	5 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Epoxy Sealed Terminals
Electrical Life	50,000 Cycles	Detailed Description	Slide Switch SPDT Panel Mount
Current Rating	0.4VA (AC/DC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Copper	Contact Finish	Gold
Circuit	SPDT	Actuator Type	Standard
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled	Actuator Length	5.10mm
