Home > Products > Switches > Slide Switches > MS12LNW03F

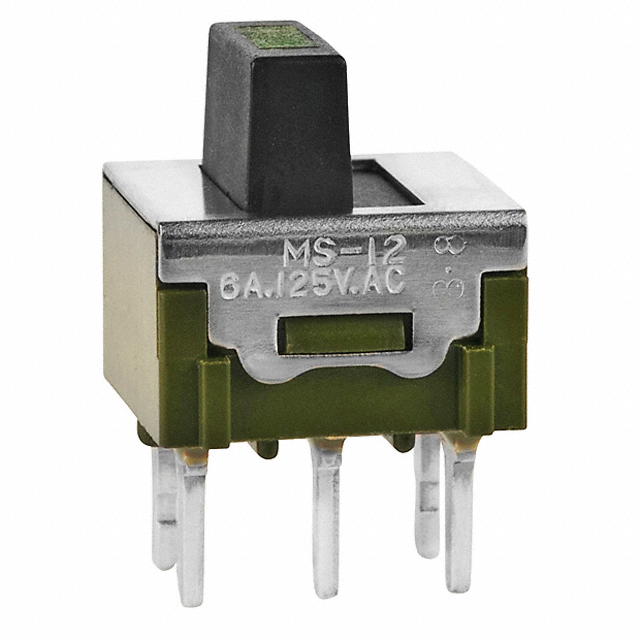

MS12LNW03F

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS12LNW03F with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MS12LNW03F
Manufacturer	NKK Switches
Description	SWITCH SLIDE SPDT 6A 125V
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 9970 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$3.42

Product parameter
Data sheet

Product parameter

Part Number	MS12LNW03F	Manufacturer	NKK Switches
Description	SWITCH SLIDE SPDT 6A 125V	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	9970 pcs	Data sheet	MS Series Mini Illuminated Slide
Category	Switches	Voltage Rating - AC	125V
Termination Style	PC Pin	Switch Travel	2.20mm
Switch Function	On-On	Series	MS
Packaging	Bulk	Operating Temperature	-30°C ~ 85°C
Operating Force	-	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	100,000 Cycles
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Slide Switch SPDT Through Hole	Current Rating	6A (AC)
Contact Timing	Non-Shorting (BBM)	Contact Material	Silver Alloy
Contact Finish	Silver	Circuit	SPDT
Actuator Type	Illuminated	Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Length	5.10mm
