Home > Products > Switches > Slide Switches > MS12LFW01F

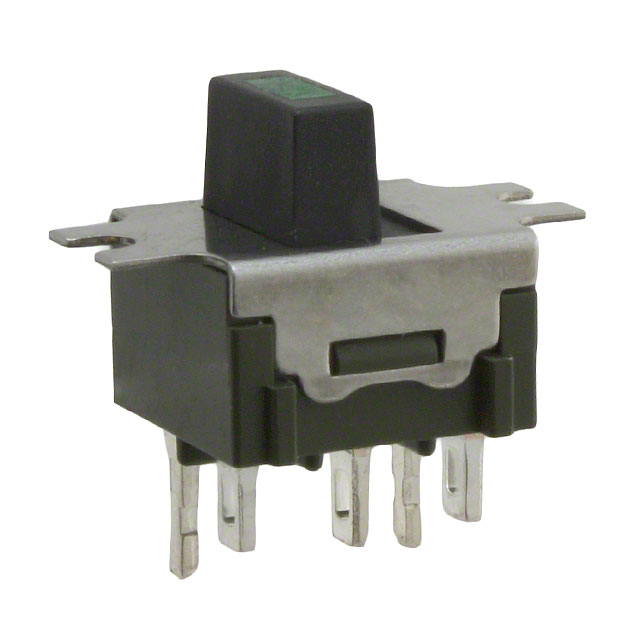

MS12LFW01F

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS12LFW01F with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MS12LFW01F
Manufacturer	NKK Switches
Description	SWITCH SLIDE SPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 15767 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$2.957	$2.921	$2.886	$2.639
	$2.534	$2.393	$2.111	$1.90

Product parameter
Data sheet

Product parameter

Part Number	MS12LFW01F	Manufacturer	NKK Switches
Description	SWITCH SLIDE SPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15767 pcs	Data sheet	MS Series Mini Illuminated Slide
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Travel	2.20mm
Switch Function	On-On	Series	MS
Packaging	Bulk	Other Names	360-3264 MS12LFW01F-ND
Operating Temperature	-30°C ~ 85°C	Operating Force	-
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Manufacturer Standard Lead Time	7 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Slide Switch SPDT Panel Mount
Current Rating	6A (AC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Silver Alloy	Contact Finish	Silver
Circuit	SPDT	Actuator Type	Illuminated
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled	Actuator Length	5.10mm
